Joint cover

Type GK-OTSA45RW | Item no. 6113030 | EAN 4012196419159

Data sheet (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

Colour

Smallest selling unit: 0 translation missing

Description Technical data Downloads Variants

Description

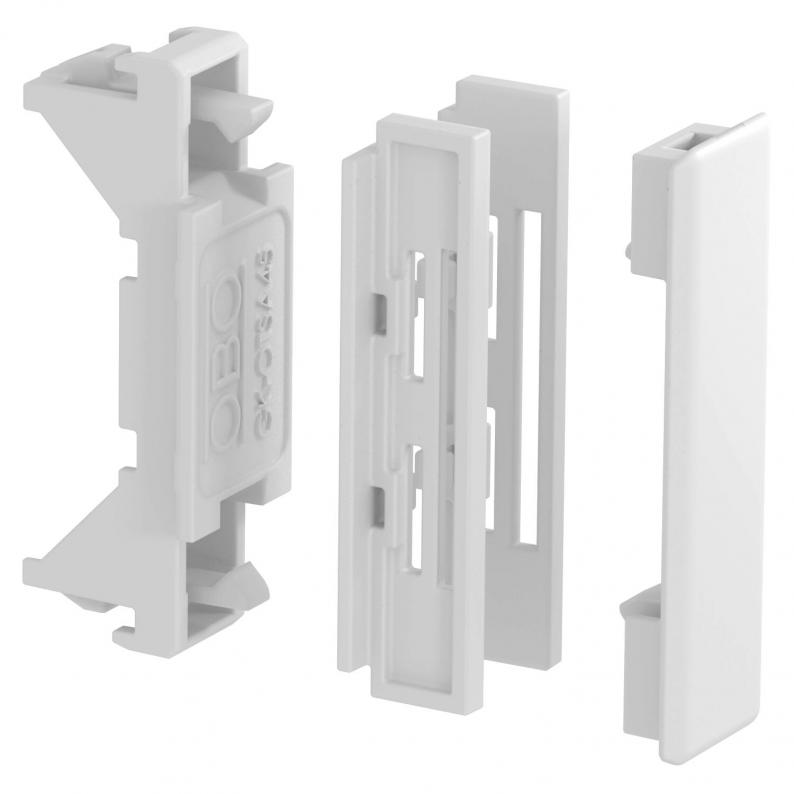

Joint cover for the cover of the Rapid 45-2 device installation trunking to hide cut edges and provide a tidy connection to installed Modul 45® devices.

Technical data

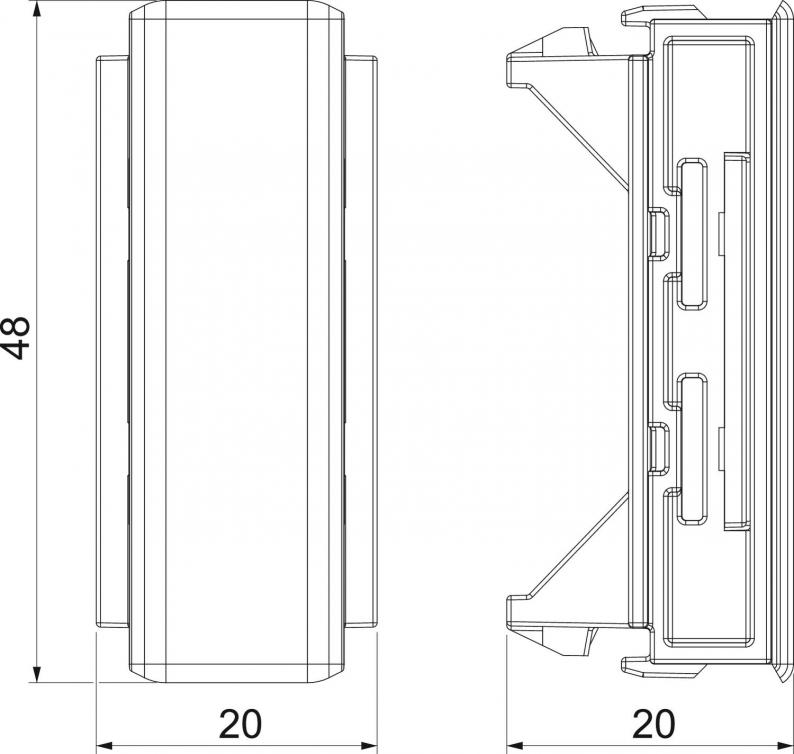

Dimensions

Length	20 mm
Width	48 mm
Height	20 mm

Technical data

Halogen-free	yes
Protection rating	IP40
Protection rating IK code	IK08
for trunking height	53 mm
Shape	Symmetrical
Version for	Cover cut lamination
Fastening type	Lockable
Cover width	45 mm
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Dimension	48x20x20
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	0,0898 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (2)

Declarations (3)

Instructions and Aid (3)

Product images (2)

3D data downloads (1)

Tender specifications (2)

Variants

Colour

GK-OTSA45SW

Item no.

6113033

Colour

Jet black; RAL 9005

GK-OTSA45RW

Item no.

6113030

Colour

Pure white; RAL 9010

GK-OTSA45LGR

Item no.

6113032

Colour

Light grey; RAL 7035

GK-OTSA45AL

Item no.

6113034

Colour

aluminium
