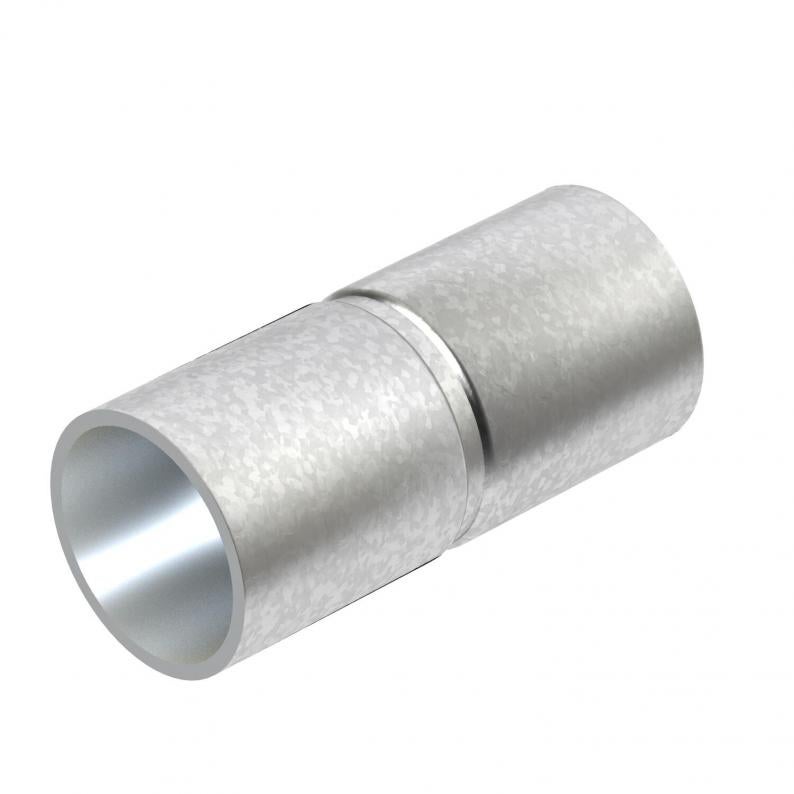

Hot-dip galvanised steel sleeve, without thread

Hot-dip galvanised steel sleeve, without thread

Type SV50W FT
|
Item no. 2046625
|
EAN 4012195782469
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length100 mm
Dimension L100 mm
Dimension d51 mm
Dimension t1,5 mm
Dimension m (mm)M50
Dimension l50 mm
Dimension D54 mm

Technical data

Halogen-freeyes
Size50
Polished surfaceno
Brushed surfaceno
for pipe diameter50 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ50mm
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,5613 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,5613 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

SV16W FT
Item no.
2046620
SV20W FT
Item no.
2046621
SV25W FT
Item no.
2046622
SV32W FT
Item no.
2046623
SV40W FT
Item no.
2046624
SV50W FT
Item no.
2046625
SV63W FT
Item no.
2046626
