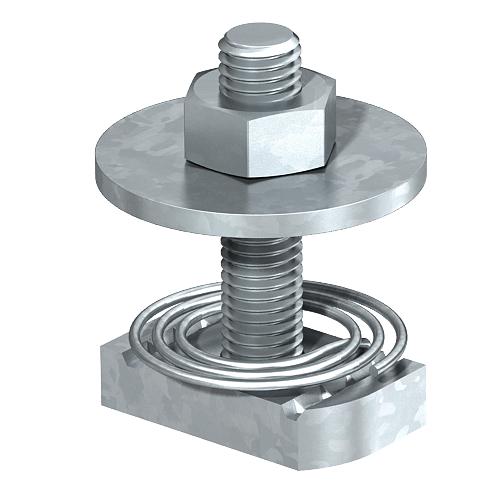

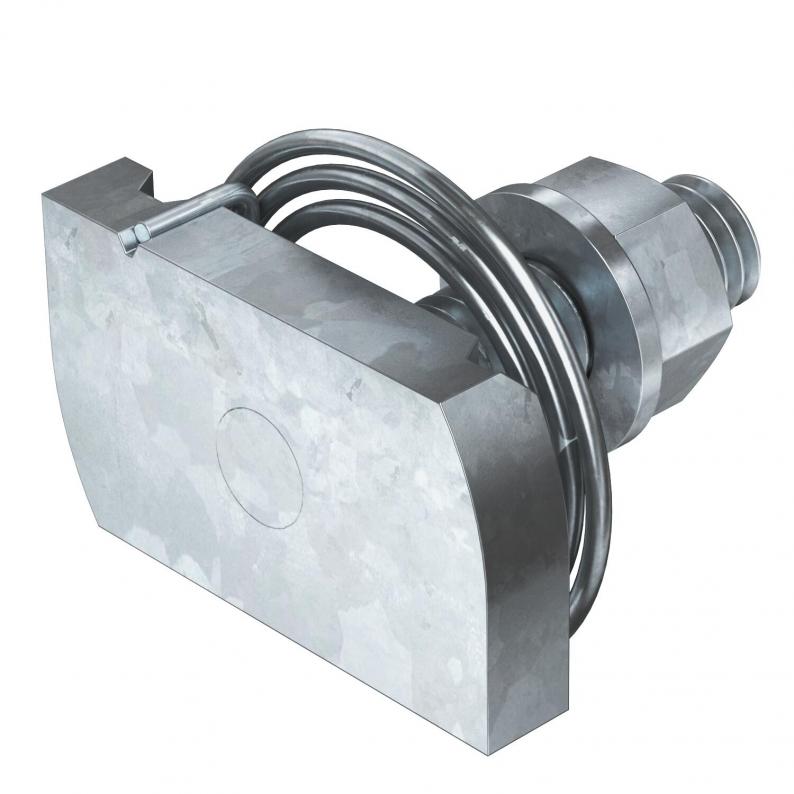

Hammer-head bolt with spring FT
Type MS41HBF M8x30 FT | Item no. 1148376 | EAN 4012196490196
Item no. / Type
Length
Width
Height
Thread
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
Description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails
Technical data

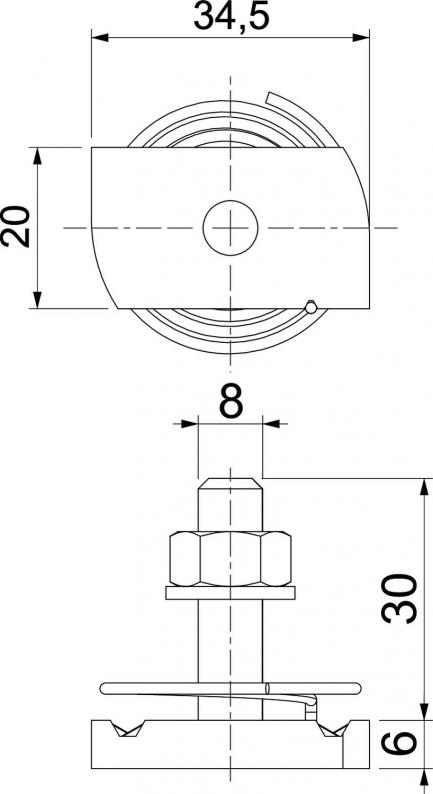

Dimensions
| Length | 34,5 mm |
|---|---|
| Width | 20 mm |
| Height | 6 mm |
| Dimension L | 30 mm |
| Dimension H | 6 mm |
Technical data
| Washer Ø | 16 mm |
|---|---|
| Thread | M 8 x 30 |
| Suitable for mounting rail | yes |
| Torque | 8 Nm |
| Dimension | M8x30mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1463 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Thread
Item no.
MS41HBF M8x30 FT
34,5
20
6
M 8 x 30
1148376
MS41HBF M8x60 FT
34,5
20
6
M 8 x 60
1148380
MS41HBF M10x30FT
34,5
20
8
M 10 x 30
1148384
MS41HBF M10x60FT
34,5
20
8
M 10 x 60
1148388
MS41HBF M12x30FT
34,5
20
9
M 12 x 30
1148392
MS41HBF M12x60FT
34,5
20
9
M 12 x 60
1148396
Height
Thread
MS41HBF M8x30 FT
Item no.
1148376
Length
34,5
Width
20
Height
6
Thread
M 8 x 30
MS41HBF M8x60 FT
Item no.
1148380
Length
34,5
Width
20
Height
6
Thread
M 8 x 60
MS41HBF M10x30FT
Item no.
1148384
Length
34,5
Width
20
Height
8
Thread
M 10 x 30
MS41HBF M10x60FT
Item no.
1148388
Length
34,5
Width
20
Height
8
Thread
M 10 x 60
MS41HBF M12x30FT
Item no.
1148392
Length
34,5
Width
20
Height
9
Thread
M 12 x 30
MS41HBF M12x60FT
Item no.
1148396
Length
34,5
Width
20
Height
9
Thread
M 12 x 60
