Flush-mounted connection box 80

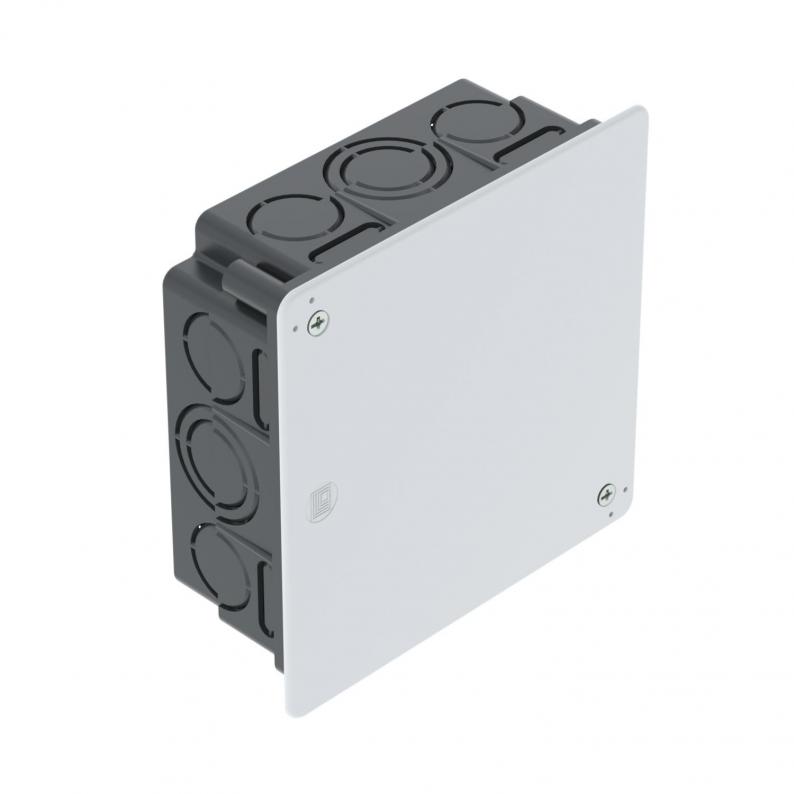

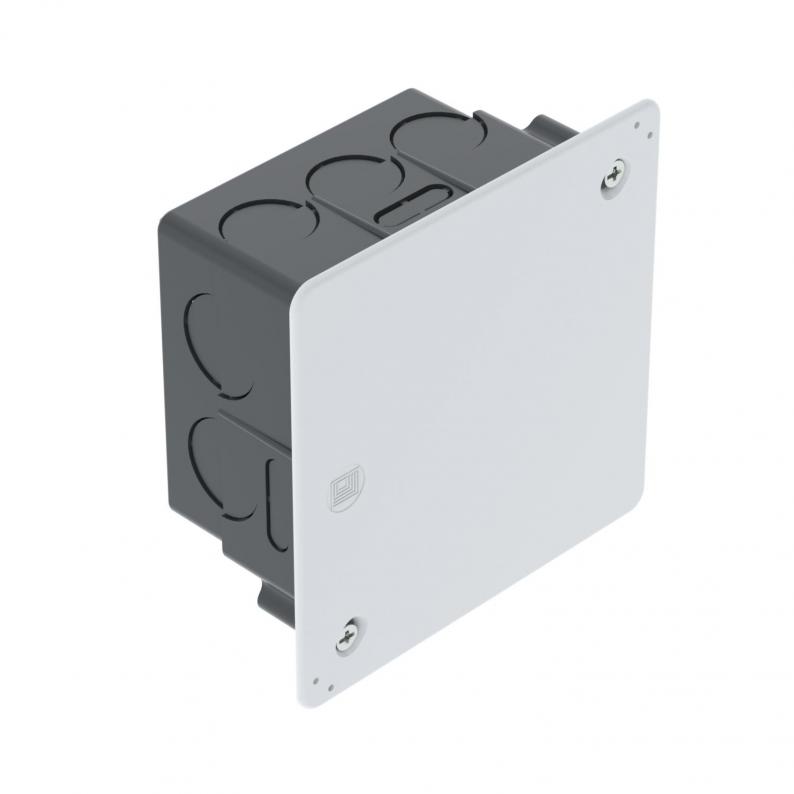

Type UV 80 K | Item no. 2003112 | EAN 4012195020479

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

2003112 / UV 80 K

No. of entries

for pipe diameter

16/19 mm

Smallest selling unit: 50 piece

Description Technical data Downloads Variants

Description

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 45 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 6 side entries of Ø 19 mm

• 4 side entries of Ø 21.5 mm

• 4 side entries for flat cables/ribbon cables

• 2 entries of Ø 21.5 mm in the base

• 2 entries for flat cables/ribbon cables at the base

Technical data

Dimensions

Length	80 mm
Width	80 mm
Height	45 mm
Dimension L	85 mm
Dimension A	102 mm
Dimension B	97 mm
Dimension H	45 mm

Technical data

Type of entry	NYM cables, data cables and corrugated pipes
Impact-resistant	yes
Floor height, min.	47 mm
Halogen-free	no
No. of entries	18
Entry from rear	no
Protection rating	IP20
Sealable	no
Maintain electrical functions	Without
Type of housing penetration	Pre-marking
With screening	no
for pipe diameter	16/19 mm
With bolts	no
Airtight	no
With nail strap	no
Support	Without
Nominal cross-section, min.	4 mm²
Shape	Square
Equipment	Without
Cover	Not transparent
Cover fastening	Screwed
Entries	<TEXT><P>18</P></TEXT>
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension	80x80x45
Material	Polystyrene
Colour	Black
Rated voltage	400 V
CO2 Footprint (GWP) Cradle-to-Gate	0,1683 kg CO₂e / 1 Piece
