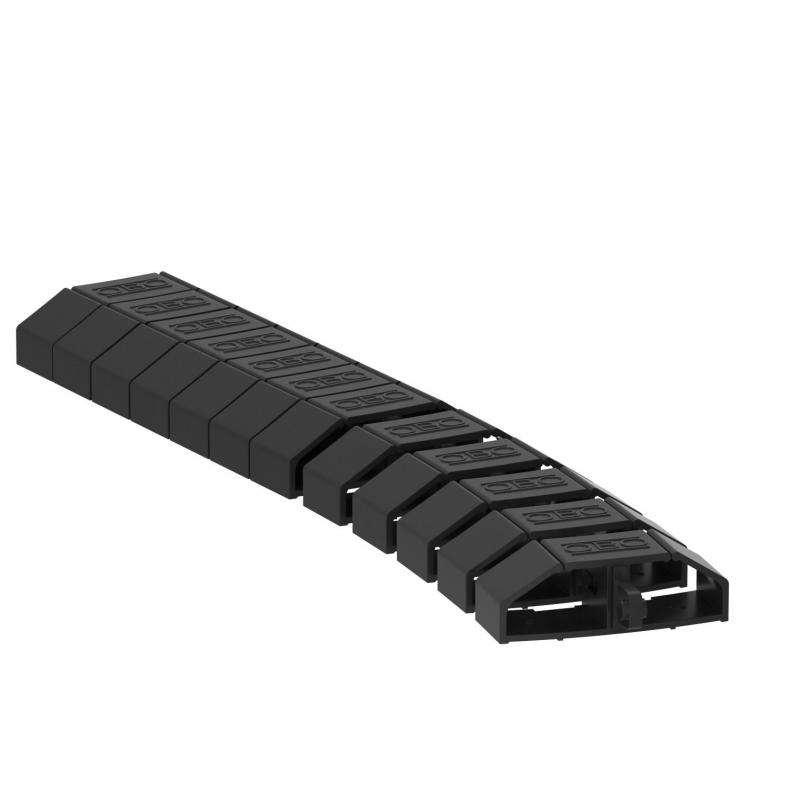

Flexkanal
Type FLK-2K SWGR | Item no. 6154930 | EAN 4012196277995
Item no. / Type
6154930 / FLK-2K SWGR
Smallest selling unit: 1 m
1m
Description
The Flexkanal runs your cables ordered and protected to the desk. It connects the Deskbox with the dado trunking or with the floor connection box. When extended, the Flexkanal is 1,000 mm long, 60 mm wide and 20 mm high.
The trunking consists of two chambers, capacity per chamber:
two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or
four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
The trunking consists of two chambers, capacity per chamber:
two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or
four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
Technical data
Dimensions
| Length | 1000 mm |
|---|
Technical data
| Dimension | 1000mm |
|---|---|
| Colour | Black-grey; RAL 7021 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Item no.
FLK-2K SWGR
1000
6154930
FLK-2K SWGR
Item no.
6154930
Length
1000
