Flexkanal
Type FLK-2K LGR | Item no. 6154922 | EAN 4012196277575
Item no. / Type
Length
Smallest selling unit: 1 m
1m
Description

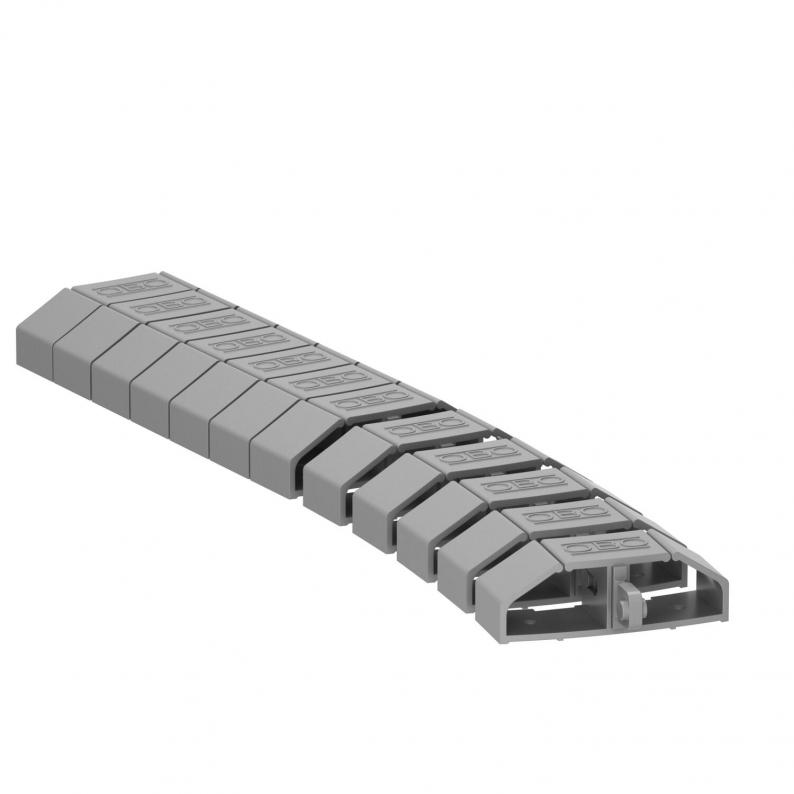

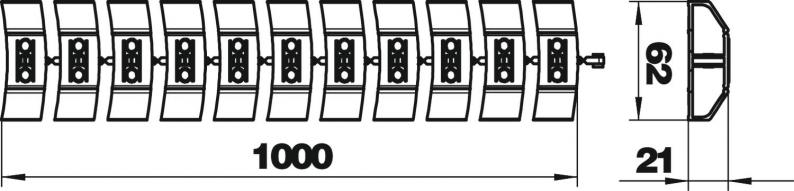

The Flexkanal runs your cables ordered and protected to the desk. It connects the Deskbox with the dado trunking or with the floor connection box. When extended, the Flexkanal is 1,000 mm long, 60 mm wide and 20 mm high.
The trunking consists of two chambers, capacity per chamber:
two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or
four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
The trunking consists of two chambers, capacity per chamber:
two cables of 8.5 mm diameter or three cables of 7.5 mm diameter or
four cables of 7.0 mm diameter or five cables of 6.0 mm diameter.
Technical data
Dimensions
| Length | 1000 mm |
|---|
Technical data
| Dimension | 1000mm |
|---|---|
| Colour | Light grey; RAL 7035 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Item no.
FLK-2K LGR
1000
6154922
FLK-2K SWGR
1000
6154930
FLK-2K LGR
Item no.
6154922
Length
1000
FLK-2K SWGR
Item no.
6154930
Length
1000
