Flat angle cover, trunking type WDKH 40060

Type WDKH-F40060RW | Item no. 6175666 | EAN 4012195814122

Item no. / Type
6175666 / WDKH-F40060RW
Colour
Pure white; RAL 9010

Smallest selling unit: 0 translation missing

Description

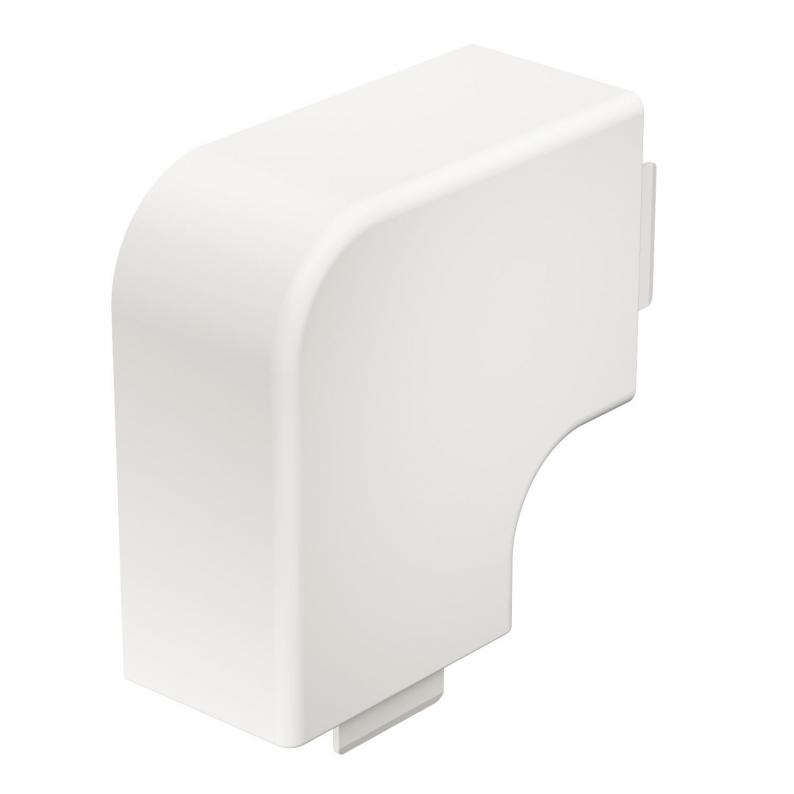

Flat angle hood for changing the direction of the halogen-free WDKH trunking.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length101 mm
Width65 mm
Height40 mm
Dimension H60 mm

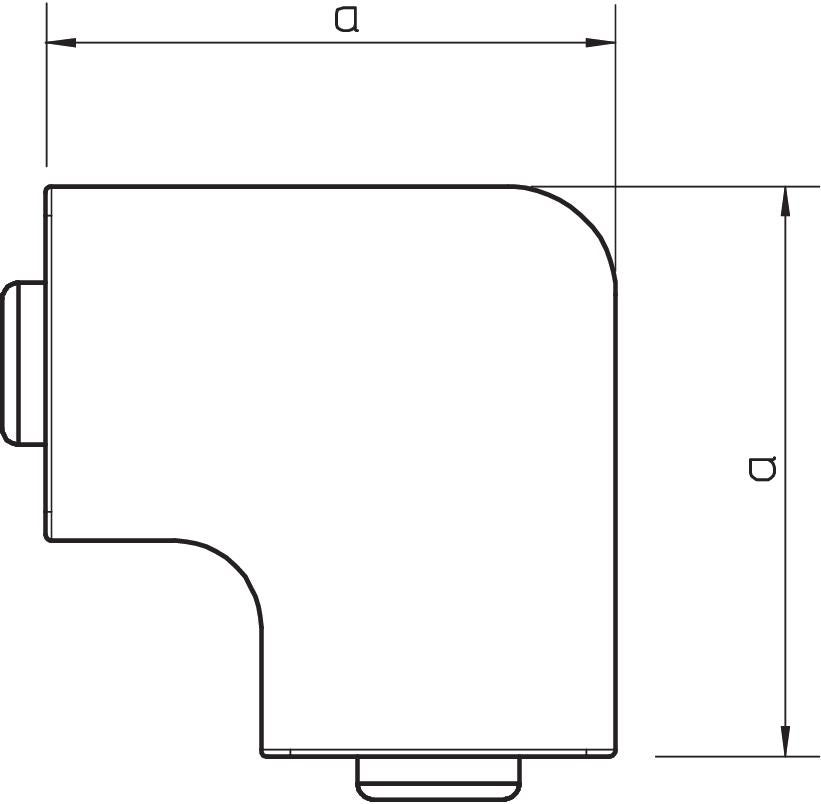

Dimension a85 mm

Technical data

Maintain electrical functionsno
for duct dimension40 x 60
Halogen-freeyes
Self-extinguishingyes
Protective filmno
Angle range, max.90 mm
Angle range, min.90 mm
Protection ratingIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Trunking depth40 mm
Duct height, min.60 mm
Permitted temperature range, max.90 °C
Permitted temperature range, min.-5 °C
Dimension40x60mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,415 kg CO2e / 1 Piece
