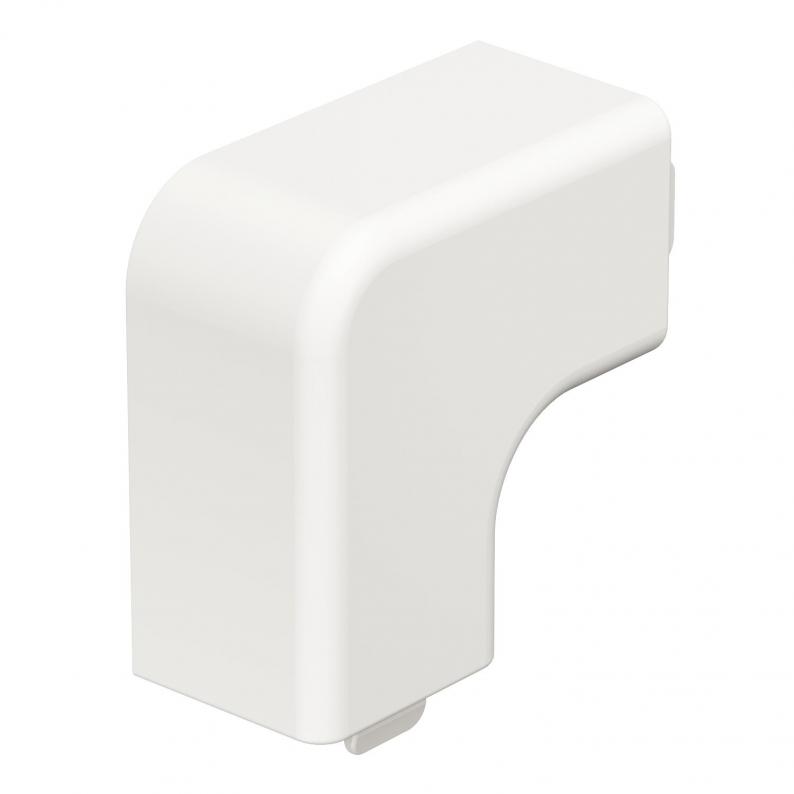

Flat angle cover, trunking type WDKH 20020

Flat angle cover, trunking type WDKH 20020

Type WDKH-F20020RW | Item no. 6175658 | EAN 4012195922896

Show all variants
Item no. / Type
6175658 / WDKH-F20020RW
Colour
Pure white; RAL 9010

Smallest selling unit: 0 translation missing

DescriptionTechnical dataDownloadsVariants

Description

Flat angle hood for changing the direction of the halogen-free WDKH trunking.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length38 mm
Width20 mm
Height17,5 mm
Dimension a38 mm

Technical data

Maintain electrical functionsno
for duct dimension20 x 20
Halogen-freeyes
Self-extinguishingyes
Protective filmno
Angle range, max.90 mm
Angle range, min.90 mm
Protection ratingIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Trunking depth20 mm
Permitted temperature range, max.90 °C
Permitted temperature range, min.-5 °C
Dimension20x20mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,043 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WDKH-F20020RW
Item no.
6175658
Colour
Pure white; RAL 9010
