Flat angle cover, smooth

Flat angle cover, smooth

Type GK-OTGFRW | Item no. 6274490 | EAN 4012195656692

Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

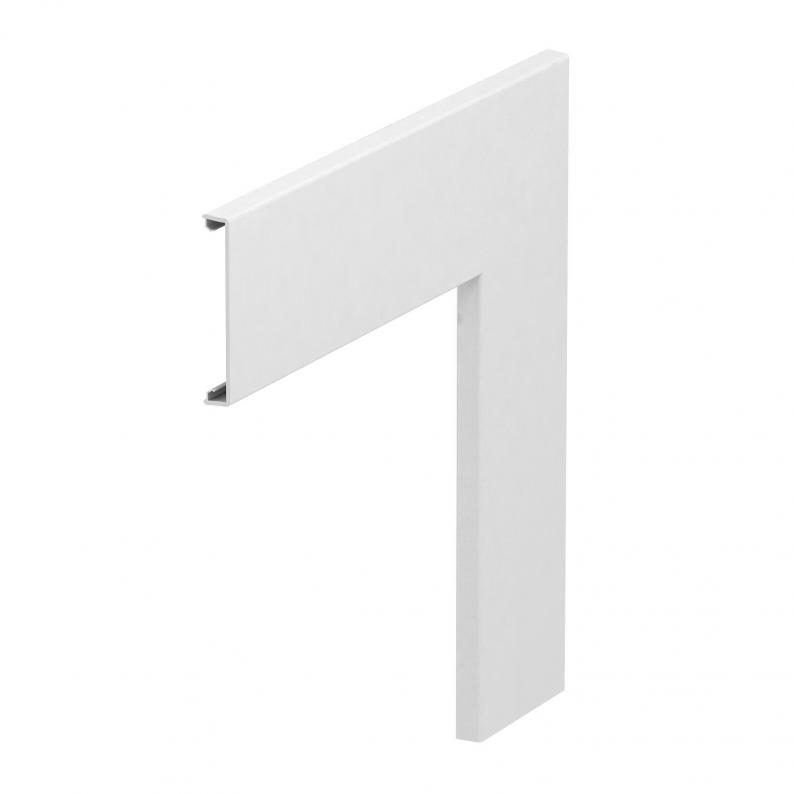

PVC flat angle cover, smooth surface.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

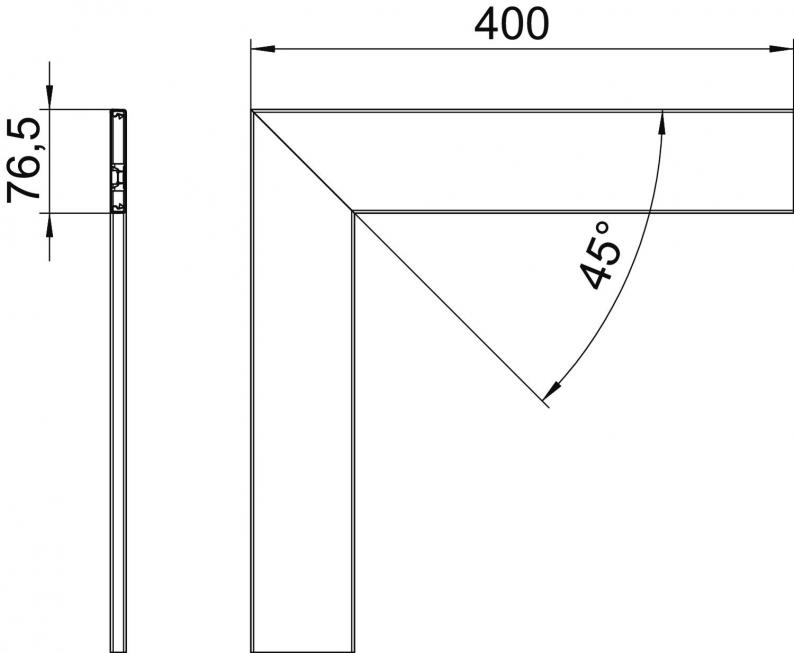

Dimensions

Length400 mm
Width76,5 mm
Height12 mm

Technical data

Halogen-freeno
Protective filmyes
Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Version forSmooth
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
MaterialPolyvinylchloride
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,5455 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

GK-OTGFRW
Item no.
6274490
Width
76,5
GK-OTGFCW
Item no.
6274491
Width
76,5
GK-OTGFLGR
Item no.
6274492
Width
76,5
GK-OTGFGR
Item no.
6274496
Width
76,5
