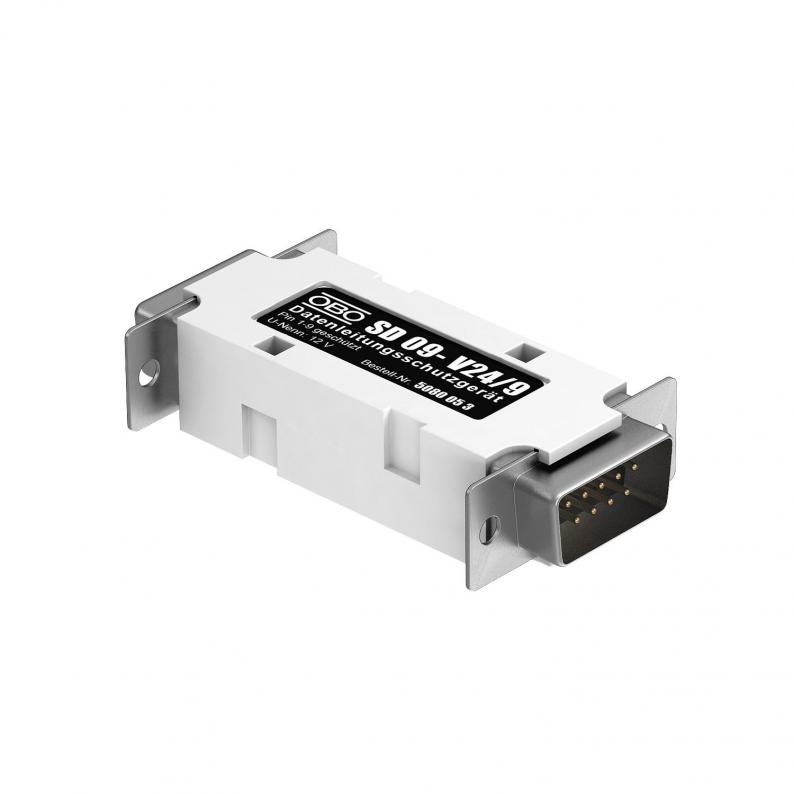

Fine protection for 9-pole RS232 interface

Type SD09-V24 9 | Item no. 5080053 | EAN 4012195915973

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5080053 / SD09-V24 9

Number of poles

Plug-in system

D-Sub 9-pin

Version for

SUB-D-9; V24 RS232

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Data cable protection device for serial interfaces

• Various connection technologies available
• Low voltage protection level

Application: PLC, alarm systems, controllers

Technical data

Dimensions

Length	60 mm
Width	16 mm
Height	34 mm

Technical data

Number of poles	9
Protection level, wire-wire at 1 kV/µs (C3)	<25 V
Protection level, wire-earth at 1 kV/µs (C3)	<25
Telecommunications contact	no
Plug-in system	D-Sub 9-pin
Protection level wire-wire	<50 V
Protection level wire-earth	<50 V
Protection rating	IP40
Testing standard	IEC 61643-21
Nominal voltage	12 V
Explosion-tested version	no
Shielding connection available	yes
Screening	Direct
Impulse durability wire-wire	0,34 kA (8/20µs)
Impulse durability wire-earth	0,34 kA (8/20µs)
Arrestor monitoring	no
Maximum continuous voltage AC	12 V
Maximum continuous voltage DC	18 V
Version for	SUB-D-9; V24 RS232
SPD to IEC 61643-21	Class III / C1
Kategorie	Type 3 / C1
Lightning protection zone LPZ	2→3
Response time	<10 ns
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Dimension	12V
CO2 Footprint (GWP) Cradle-to-Gate	0,0609 kg CO2e / 1 Piece
