Fastening clip 604, light duty
Type 604 4 G | Item no. 1003046 | EAN 4012195000853
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
Description

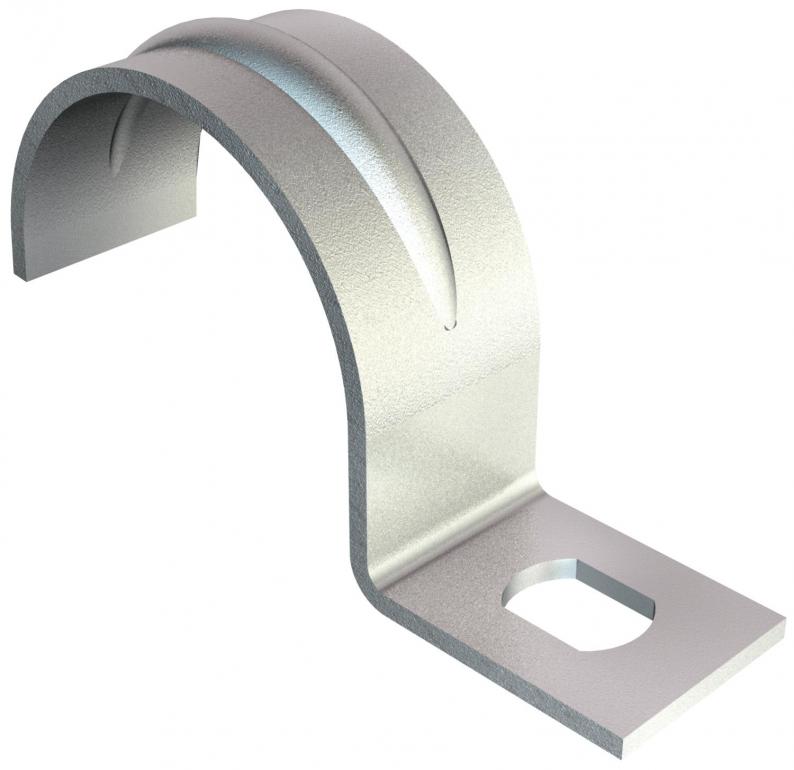

Single-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
Technical data
Dimensions
| Length | 14 mm |
|---|---|
| Width | 7 mm |
| Height | 3,3 mm |
| Dimension L | 14 mm |
| Dimension A | 4 mm |
| Dimension d | 4,5 mm |
| Dimension H | 3,3 mm |
| Dimension t | 0,7 mm |
| Dimension b | 7 mm |
| Dimension e | 6 mm |
| Dimension D | 4 mm |
Technical data
| Material thickness | 0,7 mm |
|---|---|
| For diameter | 4 |
| Hole size | 4,5 x 6 mm |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 4 mm |
| Distance to the wall | no |
| Version for | Single-lobe |
| Fastening type | Screw hole |
| Dimension | 4mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0019 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
For diameter
Item no.
604 4 G
4
1003046
604 6 G
6
1003062
604 8 G
8
1003089
604 10 G
10
1003100
For diameter
604 4 G
Item no.
1003046
For diameter
4
604 6 G
Item no.
1003062
For diameter
6
604 8 G
Item no.
1003089
For diameter
8
604 10 G
Item no.
1003100
For diameter
10
