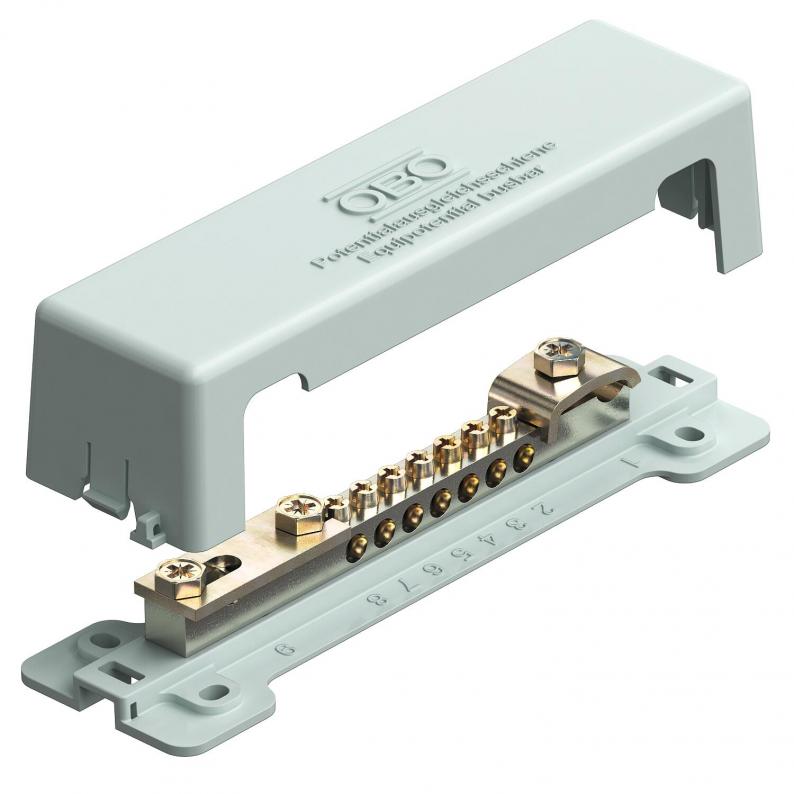

Equipotential busbar with plastic base plate
Type 1809 | Item no. 5015073 | EAN 4012195378259
Item no. / Type
5015073 / 1809
Colour
Grey
Smallest selling unit: 1 piece
1piece
Description
Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Base plate and cover hood made of polystyrene, grey
• Sealable / labellable cover
• Contact strip made of nickel-plated brass
• Screws and crossbar made of electrogalvanised steel
• Capable of carrying lightning current of 100 kA (10/350)
Connection options:
• 7x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 round conductor Rd 8–10
• 1 flat strip to FL30 or round conductor Rd 8–10
With sealable cover hood,
made from impact-resistant plastic
• Base plate and cover hood made of polystyrene, grey
• Sealable / labellable cover
• Contact strip made of nickel-plated brass
• Screws and crossbar made of electrogalvanised steel
• Capable of carrying lightning current of 100 kA (10/350)
Connection options:
• 7x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 round conductor Rd 8–10
• 1 flat strip to FL30 or round conductor Rd 8–10
With sealable cover hood,
made from impact-resistant plastic
Minimum order quantity 00000
Technical data

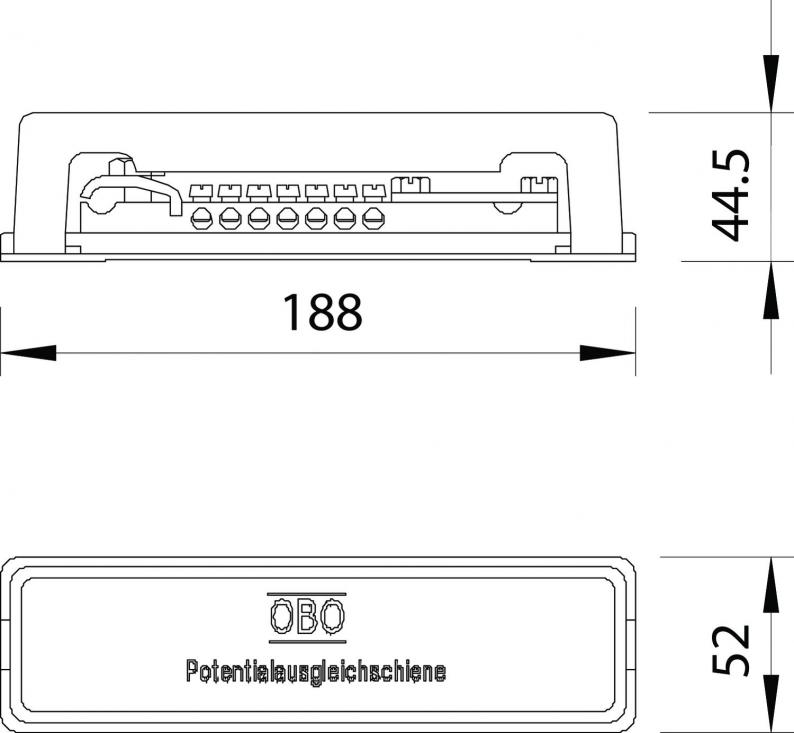

Dimensions
| Length | 188 mm |
|---|---|
| Width | 52 mm |
| Height | 44,5 mm |
Technical data
| Insulator | yes |
|---|---|
| Quantity of round conductor connections, total | 1 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 7 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | With cover hood |
| Lightning current carrying capacity | H/100 kA |
| Type | Fixed structure |
| Dimension | 188mm |
| Material | Brass |
| Colour | Grey |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6705 kg CO2e / 1 Piece |
