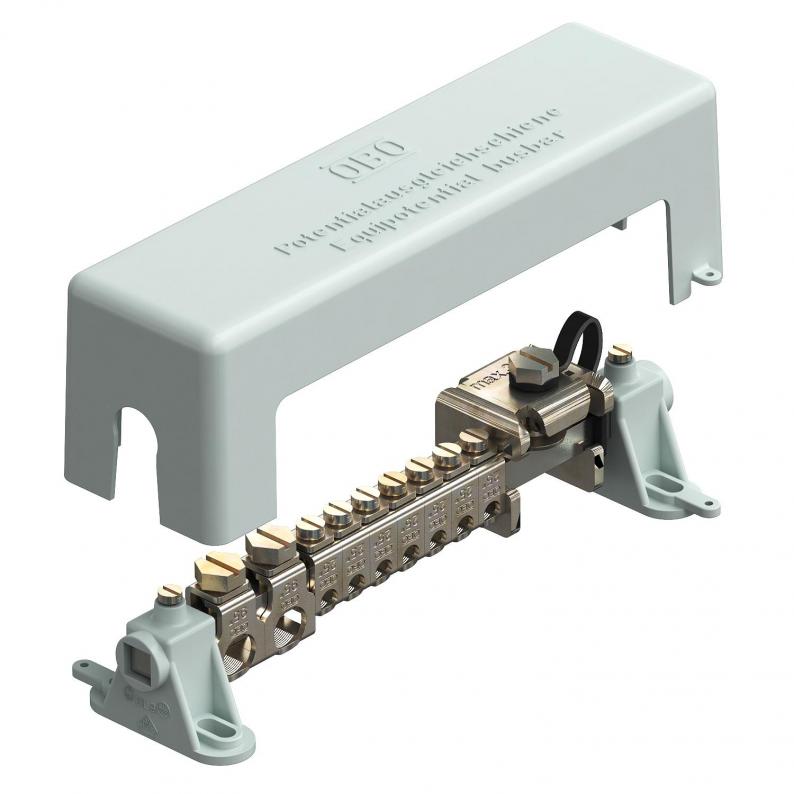

Equipotential busbar for indoors, VDE-tested
Type 1801 VDE | Item no. 5015650 | EAN 4012195378556
Item no. / Type
Length
Width
Height
Colour
Grey
Smallest selling unit: 1 piece
1piece
Description
Equipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305
• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)
Connection options:
• 7 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm
With sealable cover hood,
made from impact-resistant plastic
• According to VDE 0618, Part 1
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)
Connection options:
• 7 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 2 single or multi-wire cable 25–95 mm² or fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm
With sealable cover hood,
made from impact-resistant plastic
Technical data

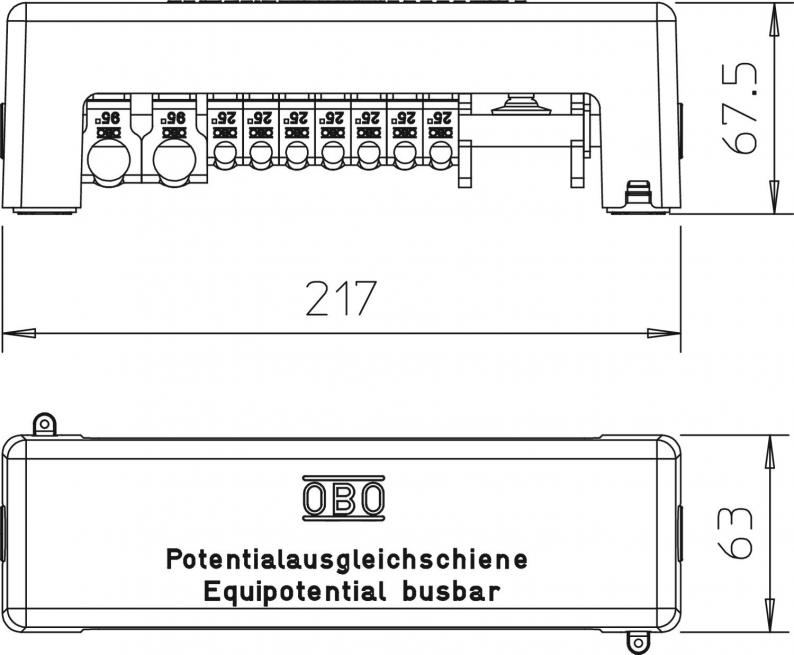

Dimensions
| Length | 217 mm |
|---|---|
| Width | 63 mm |
| Height | 67,5 mm |
Technical data
| Insulator | yes |
|---|---|
| Quantity of round conductor connections, total | 0 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 7 |
| Quantity of cable connections up to 95 mm², rigid | 2 |
| Material of the contact rail | Brass |
| Material of the terminal | Steel |
| Surface of the contact rail | Nickel-plated |
| Surface of the terminal | Electrogalvanised |
| Version for | With cover hood |
| Type | Modular structure |
| Dimension | 217mm |
| Material | Brass |
| Colour | Grey |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,778 kg CO2e / 1 Piece |
