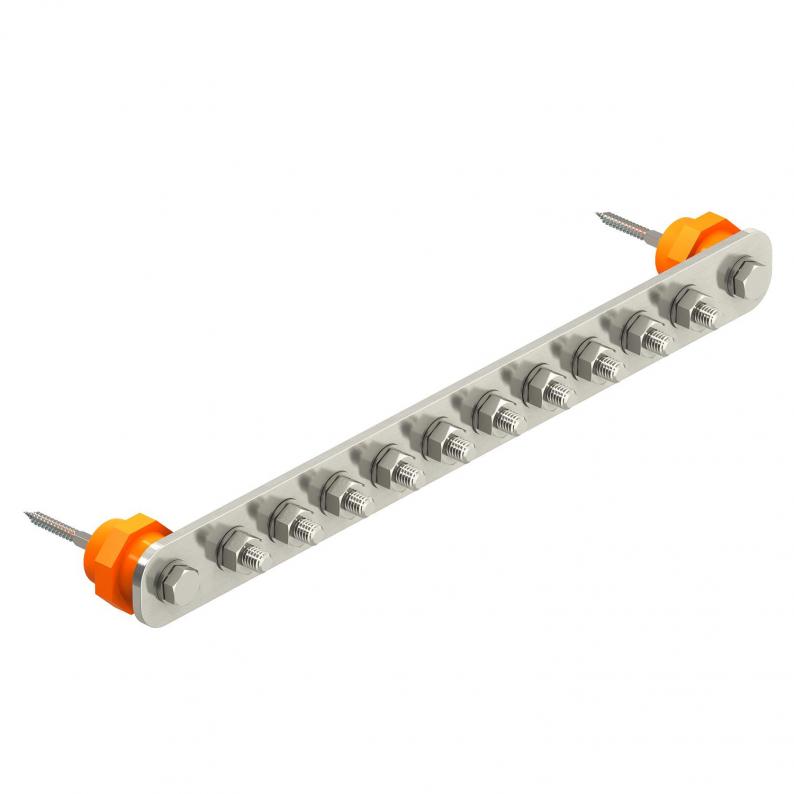

Equipotential busbar BigBar for industrial application
Type 1802 10 VA | Item no. 5015866 | EAN 4012195002284
Item no. / Type
Length
Width
Height
Number of connections
Smallest selling unit: 1 piece
1piece
Description
• Main potential equalisation to VDE 0100 Part 410 and Part 540, and also lightning protection potential equalisation to VDE 0185-305 (IEC 62305)
• Insulation feet
• Quick, simple assembly of connection conductors to the contact rail using lock bolts M10
• The high-grade stainless steel versions (V2A) are suitable for outdoor use
• Complete with anchors and bolts for wall mounting
• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and Ex areas)
• Insulation feet
• Quick, simple assembly of connection conductors to the contact rail using lock bolts M10
• The high-grade stainless steel versions (V2A) are suitable for outdoor use
• Complete with anchors and bolts for wall mounting
• With lock washer (DIN 137) for bolt locking against loosening (e.g. required in industry and Ex areas)
Technical data
Dimensions
| Length | 408,5 mm |
|---|---|
| Width | 40 mm |
| Height | 5 mm |
Technical data
| Number of connections | 10 |
|---|---|
| Insulator | yes |
| Quantity of round conductor connections, total | 10 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 0 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Rustproof steel (V2A) |
| Material of the terminal | Rustproof steel (V2A) |
| Version for | Only terminal |
| Lightning current carrying capacity | H/100 kA |
| Type | Modular structure |
| Dimension | 10xM10 |
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,0023 kg CO2e / 1 Piece |
