End piece, trunking type WDKH 40060
Type WDKH-E40060RW | Item no. 6175558 | EAN 4012195813934
Item no. / Type
6175558 / WDKH-E40060RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
Description

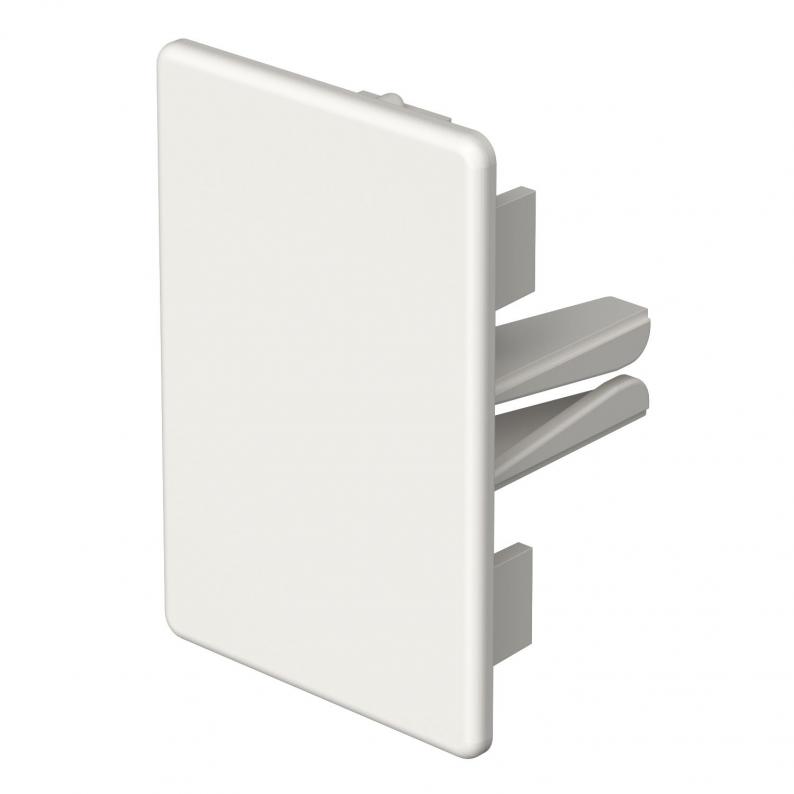

End piece for closing the WDK-H trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
Technical data

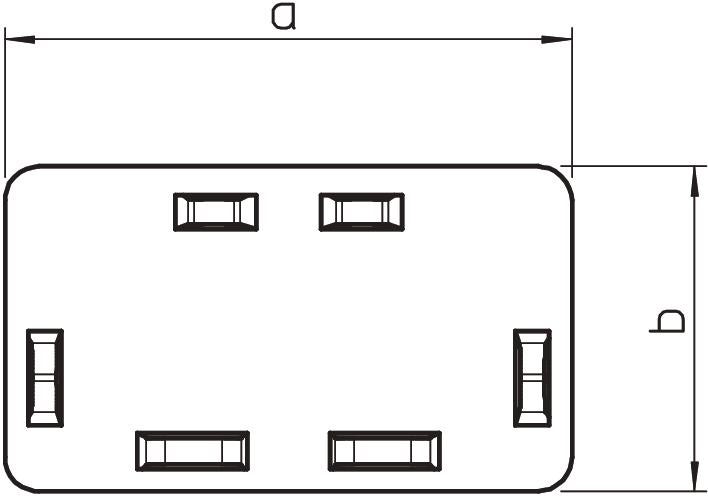

Dimensions
| Length | 27,5 mm |
|---|---|
| Width | 60 mm |
| Height | 40 mm |
| Dimension b | 60 mm |
| Dimension a | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halogen-free | yes |
| Protective film | no |
| Protection rating | IP30 |
| Protection rating IK code | IK07. |
| Version for | Left/right |
| Fastening type | Lockable |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 40x60mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0866 kg CO2e / 1 Piece |
