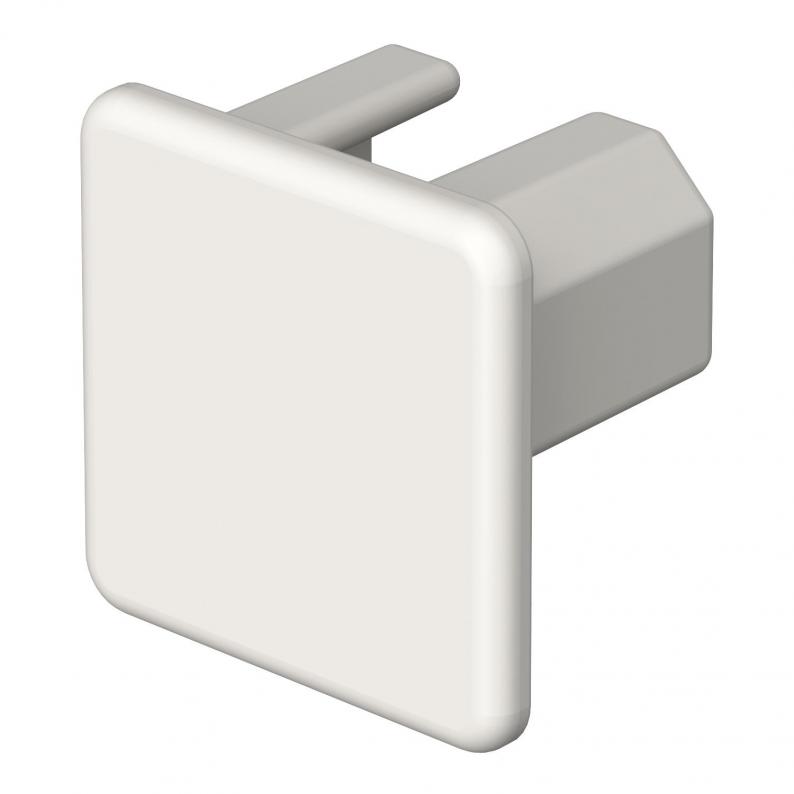

End piece, trunking type WDKH 20020

End piece, trunking type WDKH 20020

Type WDKH-E20020RW | Item no. 6175550 | EAN 4012195813910

Show all variants
Item no. / Type
6175550 / WDKH-E20020RW
Colour
Pure white; RAL 9010

Smallest selling unit: 0 translation missing

DescriptionTechnical dataDownloadsVariants

Description

End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length11,5 mm
Width17 mm
Height17 mm

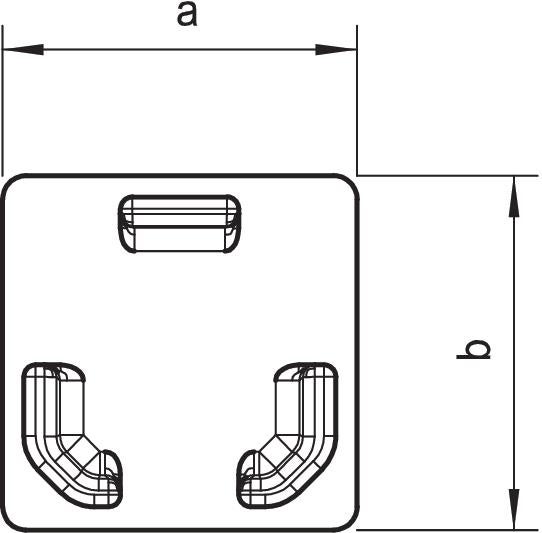

Dimension b18 mm
Dimension a19 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK07.
Version forLeft/right
Fastening typeLockable
Permitted temperature range, max.90 °C
Permitted temperature range, min.-5 °C
Dimension20x20mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,0106 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WDKH-E20020RW
Item no.
6175550
Dimension b
18
Dimension a
19
Colour
Pure white; RAL 9010
