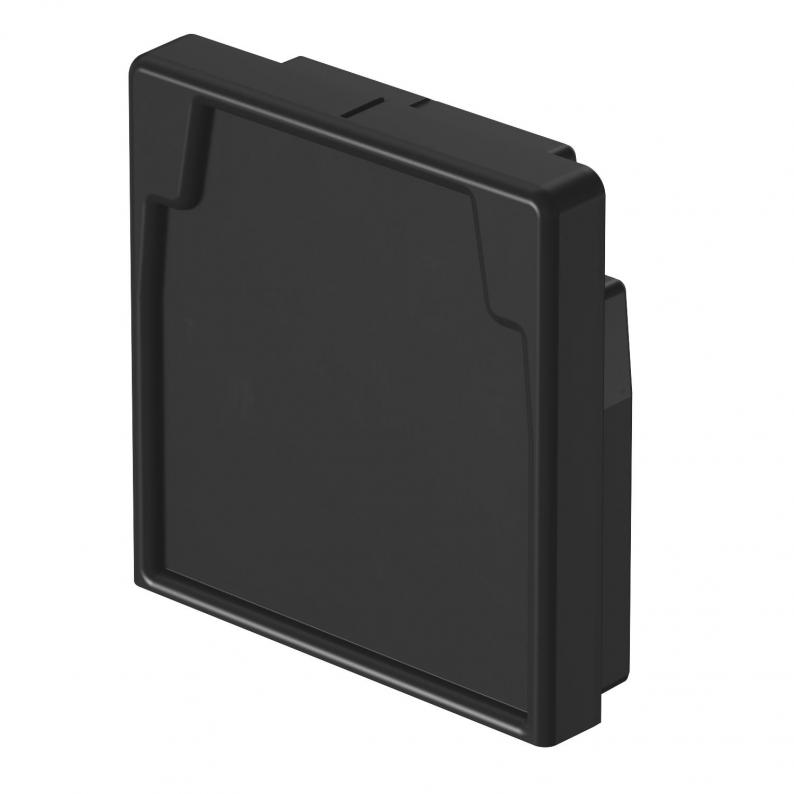

End piece, for cable trunking type 60060

End piece, for cable trunking type 60060

Type LKM EK60060 | Item no. 6249782 | EAN 4012197377403

Show all variants
Item no. / Type
6249782 / LKM EK60060
Colour
Graphite black; RAL 9011

Smallest selling unit: 0 translation missing

DescriptionTechnical dataDownloadsVariants

Description

End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length18 mm
Width63 mm
Height65 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Halogen-freeyes
Protective filmno
Version forLeft/right
Fastening typeLockable
Dimension60x60mm
MaterialThermoplastic elastomer
ColourGraphite black; RAL 9011
CO2 Footprint (GWP) Cradle-to-Gate0,0431 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

LKM EK60060
Item no.
6249782
Colour
Graphite black; RAL 9011
