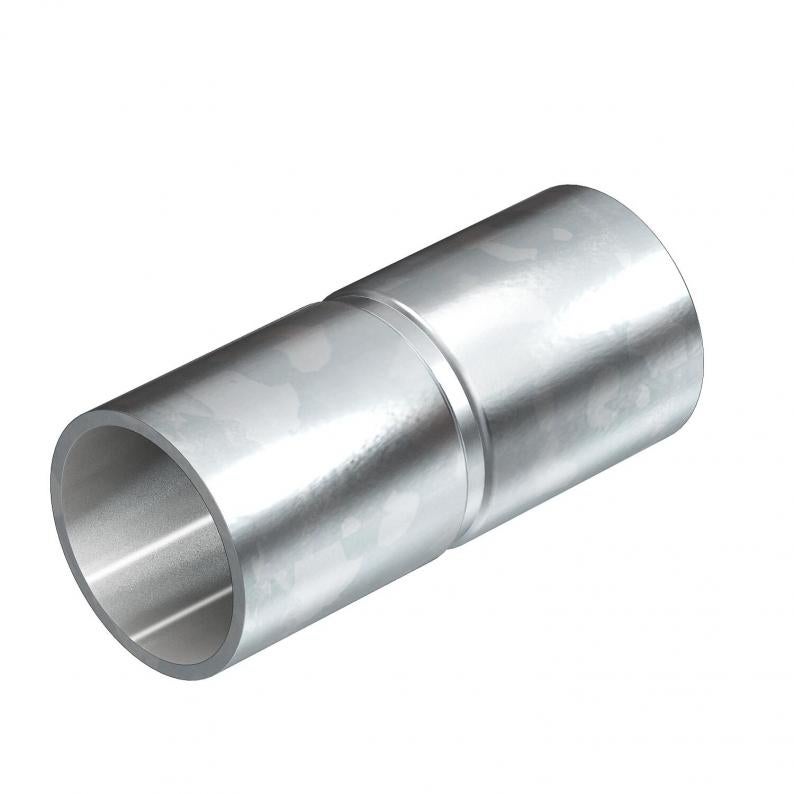

Electrogalvanised steel sleeve, without thread

Electrogalvanised steel sleeve, without thread

Type SV25W G
|
Item no. 2046856
|
EAN 4012195924807
Show all variants
Item no. / Type

Smallest selling unit: 50 piece

piece

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

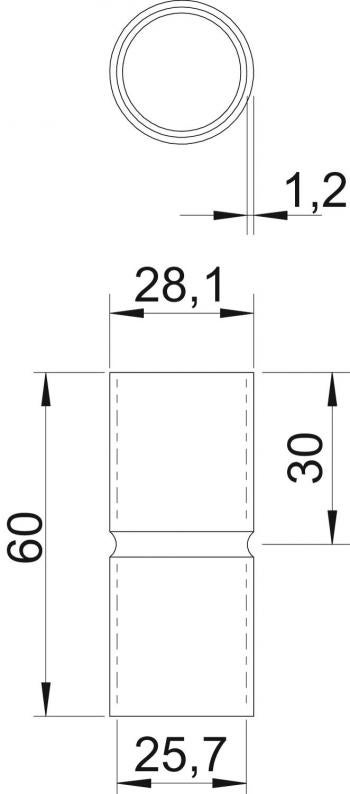

Dimensions

Length60 mm
Dimension L60 mm
Dimension d25,7 mm
Dimension t1,2 mm
Dimension m (mm)M25
Dimension l30 mm
Dimension D28,1 mm

Technical data

Halogen-freeyes
Size25
Polished surfaceno
Brushed surfaceno
for pipe diameter25 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ25mm
SurfaceElectrogalvanised
MaterialSteel

Environmental Data

0,1172 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1172 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

SV16W G
Item no.
2046854
SV20W G
Item no.
2046855
SV25W G
Item no.
2046856
SV32W G
Item no.
2046857
SV40W G
Item no.
2046858
SV50W G
Item no.
2046859
SV63W G
Item no.
2046860
