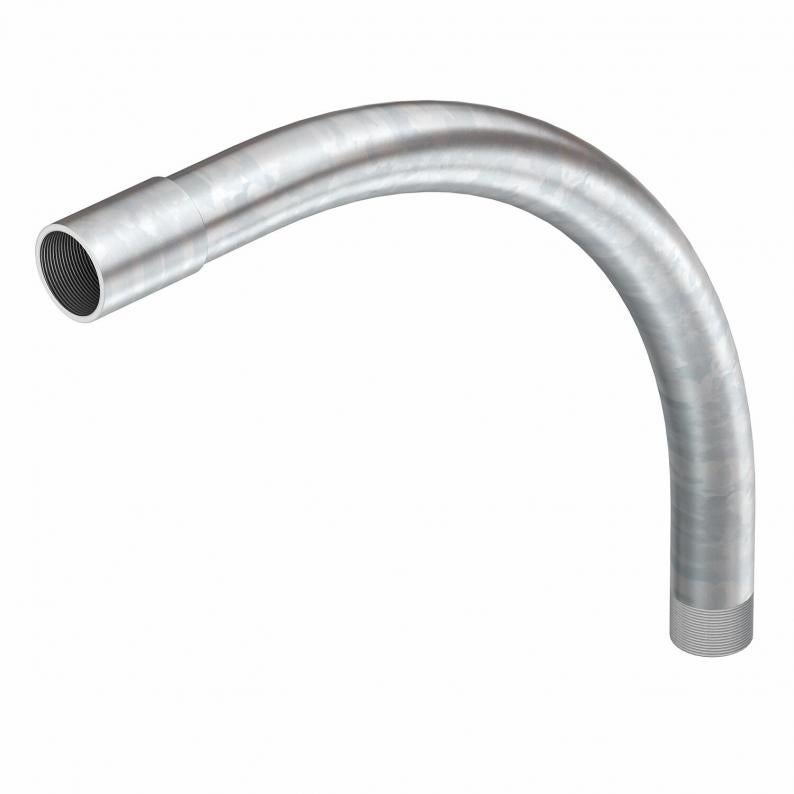

Electrogalvanised steel bend, with thread

Electrogalvanised steel bend, with thread

Type SBNM50 G
|
Item no. 2046783
|
EAN 4012196387540
Show all variants
Item no. / Type
Thread

Smallest selling unit: 5 piece

piece

Description

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Dimension A133 mm
Dimension B358 mm
Dimension t1,6 mm
Dimension m (mm)M50
Dimension l25 mm
Dimension R200 mm
Dimension D50 mm

Technical data

Halogen-freeno
ThreadM50x1,5
Angle of the bend90 °
Polished surfaceno
With sleeveyes
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partno
For nominal pipe diameter50 mm
Version forThread
DimensionM50x1,5
SurfaceElectrogalvanised
MaterialSteel

Environmental Data

4,147 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate4,147 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Thread
SBNM16 G
Item no.
2046778
Thread
M16x1,5
SBNM20 G
Item no.
2046779
Thread
M20x1,5
SBNM25 G
Item no.
2046780
Thread
M25x1,5
SBNM32 G
Item no.
2046781
Thread
M32x1,5
SBNM40 G
Item no.
2046782
Thread
M40x1,5
SBNM50 G
Item no.
2046783
Thread
M50x1,5
SBNM63 G
Item no.
2046784
Thread
M63x1,5
