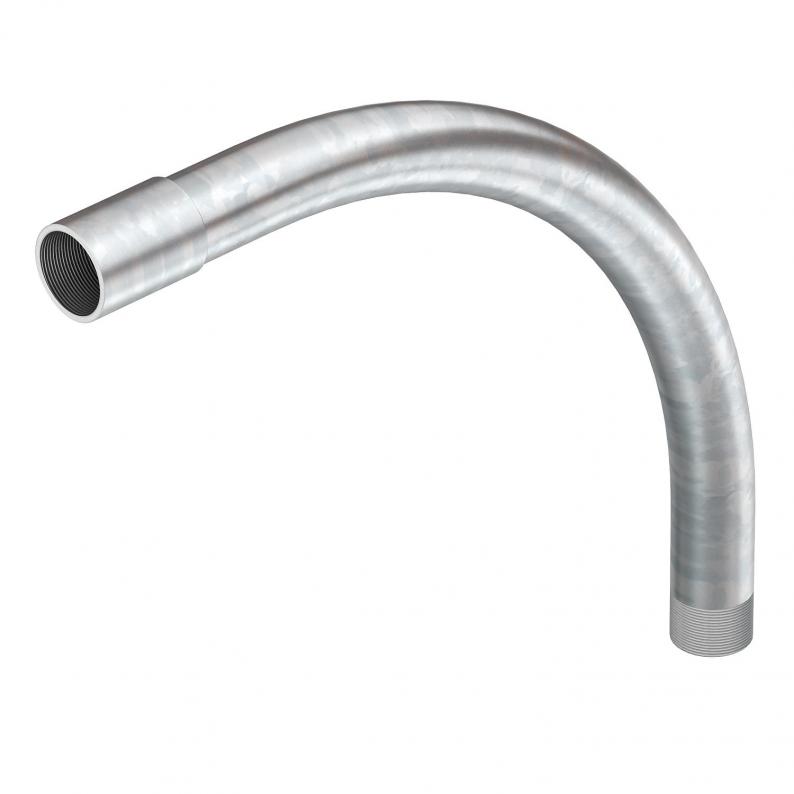

Electrogalvanised steel bend, with thread
Type SBNM16 G | Item no. 2046778 | EAN 4012196388165
Item no. / Type
Thread
Smallest selling unit: 15 piece
15piece
Description
90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
One connection sleeve is already screwed onto each pipe bend.
Technical data
Dimensions
| Dimension A | 45 mm |
|---|---|
| Dimension B | 103 mm |
| Dimension t | 1,4 mm |
| Dimension m (mm) | M16 |
| Dimension l | 13 mm |
| Dimension R | 50 mm |
| Dimension D | 16 mm |
Technical data
| Halogen-free | no |
|---|---|
| Thread | M16x1,5 |
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | yes |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | no |
| For nominal pipe diameter | 16 mm |
| Version for | Thread |
| Dimension | M16x1,5 |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3759 kg CO₂e / 1 Piece |
