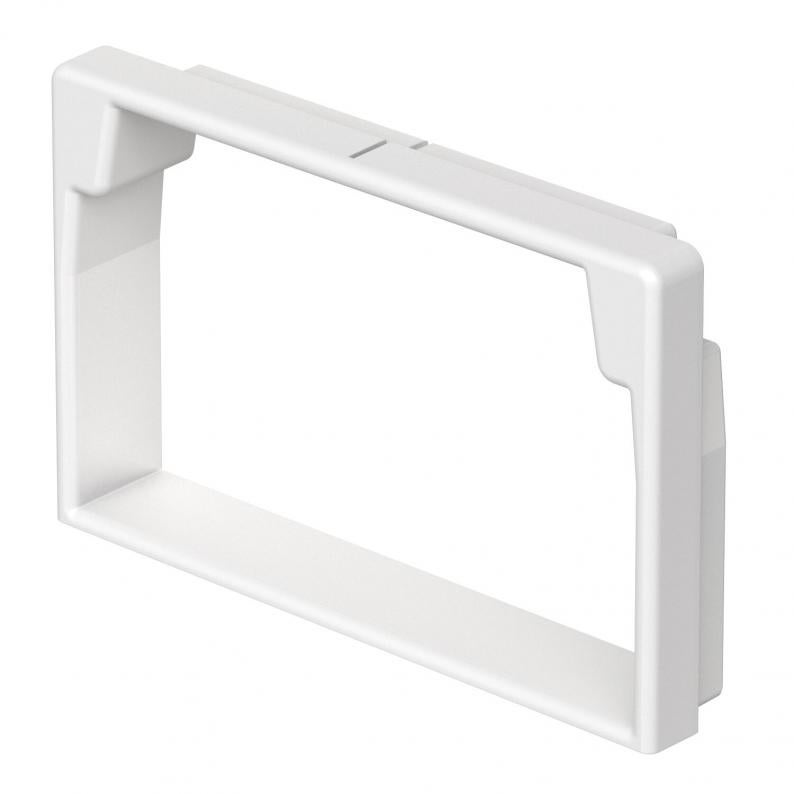

Edge protection ring, for cable trunking, type LKM 60100

Edge protection ring, for cable trunking, type LKM 60100

Type LKM KSR60100RW
Item no. 6249662
EAN 4012197532192
Show all variants
Item no. / Type
Length
Width

Smallest selling unit: 5 piece

piece

Description

Edge protection ring for the open ends of LKM cable trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

Dimensions

Length18 mm
Width103 mm
Height65 mm

Technical data

Halogen-freeyes
Protection ratingIP30
Protection rating IK codeIK10
Suitable forCable routing duct
TypeInjection-moulded part
ROHS-conformantyes
for plate thickness, min.0,75 mm
Dimension60x100mm
MaterialThermoplastic elastomer
ColourPure white; RAL 9010
Product seriesLKM

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (1)

Variants

Length
Width
LKM KSR60100GRSW
Item no.
6249754
Length
18
Width
103
LKM KSR60100RW
Item no.
6249662
Length
18
Width
103
KSR60100
Item no.
6249852
Length
21
Width
104
Dimension b
68
Dimension a
104
