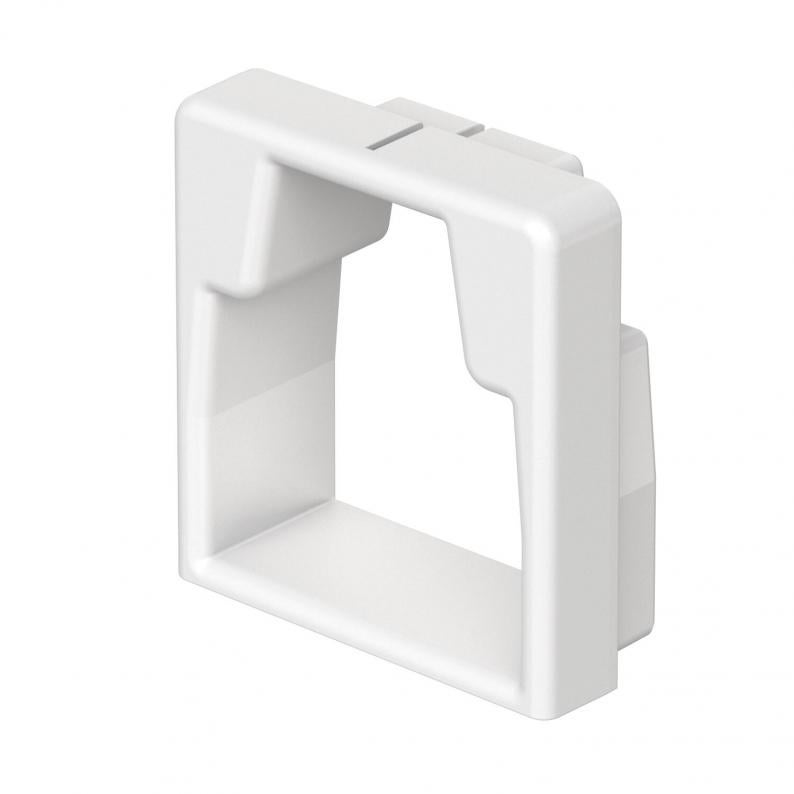

Edge protection ring, for cable trunking, type LKM 40040
Type LKM KSR40040RW
Item no. 6249659
EAN 4012197532079
Item no. / Type
Length
Width
Smallest selling unit: 5 piece
5piece
piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data
Dimensions
| Length | 18 mm |
|---|---|
| Width | 43 mm |
| Height | 45 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| ROHS-conformant | yes |
| for plate thickness, min. | 0,75 mm |
| Dimension | 40x40mm |
| Material | Thermoplastic elastomer |
| Colour | Pure white; RAL 9010 |
| Product series | LKM |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Item no.
LKM KSR40040GRSW
18
43
6249748
LKM KSR40040RW
18
43
6249659
LKM KSR40040GRSW
Item no.
6249748
Length
18
Width
43
LKM KSR40040RW
Item no.
6249659
Length
18
Width
43
