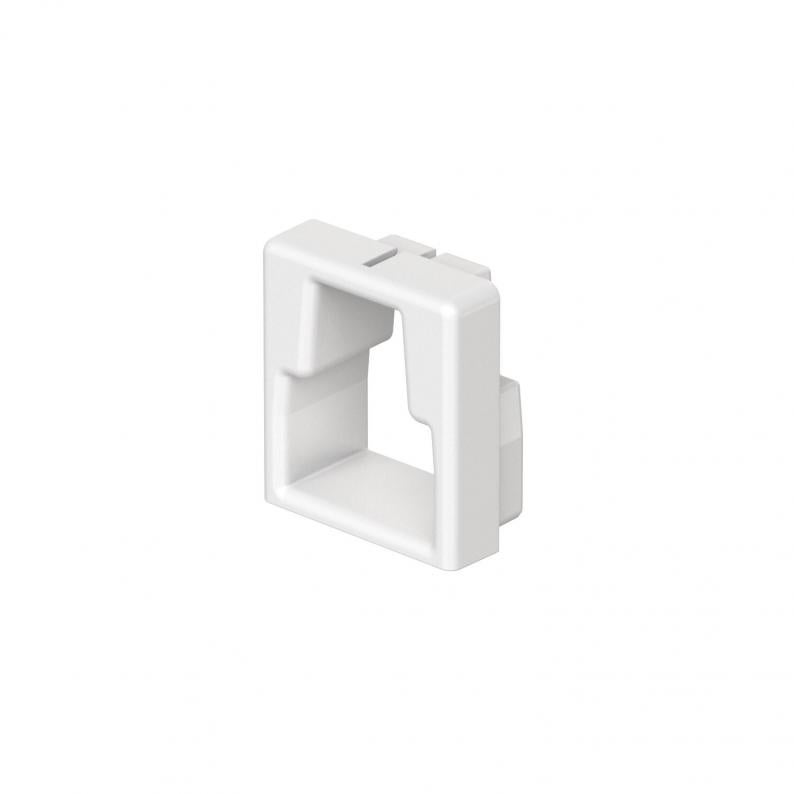

Edge protection ring, for cable trunking, type LKM 20020
Type LKM KSR20020RW
Item no. 6249656
EAN 4012197531959
Item no. / Type
Length
Width
Smallest selling unit: 5 piece
5piece
piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data
Dimensions
| Length | 11 mm |
|---|---|
| Width | 22 mm |
| Height | 25 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| ROHS-conformant | yes |
| for plate thickness, min. | 0,5 mm |
| Dimension | 20x20mm |
| Material | Thermoplastic elastomer |
| Colour | Pure white; RAL 9010 |
| Product series | LKM |
