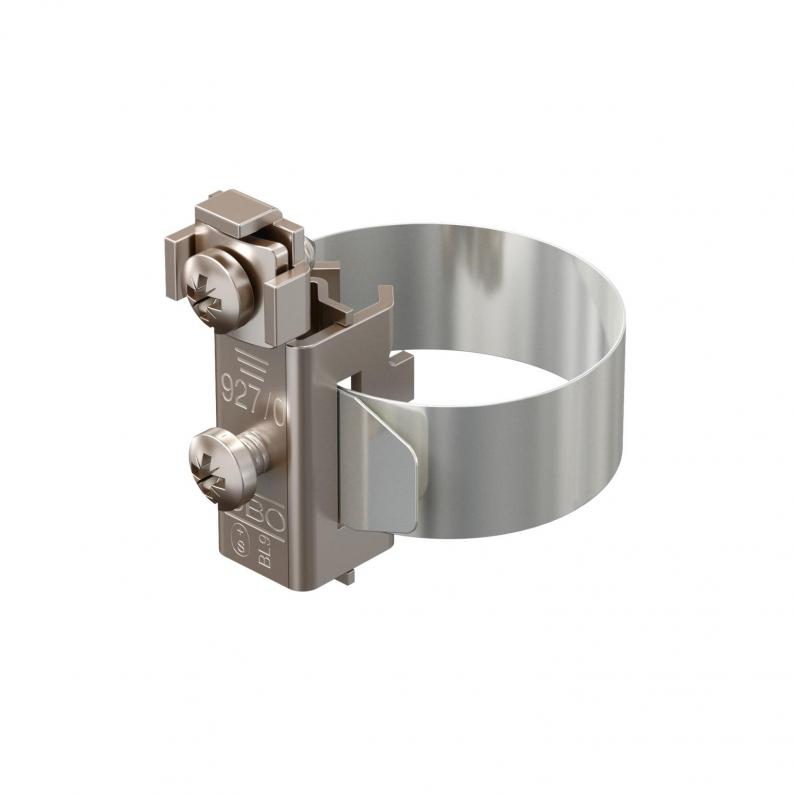

Earthing pipe clamp, nickel-plated
Type 927 0 | Item no. 5057507 | EAN 4012195388517
Item no. / Type
5057507 / 927 0
Smallest selling unit: 10 piece
10piece
Description
• For pipe Ø 8-22 mm
• Connection options: max. 2 conductors 2.5-10 mm²
• Clamp elements and screws from nickel-plated brass
• Tightening strap from high-grade stainless steel (V2A)
• Connection options: max. 2 conductors 2.5-10 mm²
• Clamp elements and screws from nickel-plated brass
• Tightening strap from high-grade stainless steel (V2A)
Technical data
Technical data
| For pipe diameter, max. | 22 mm |
|---|---|
| For pipe diameter, min. | 8 mm |
| Number of conductors | 2 |
| Cross-section of cable to be connected, max. | 10 mm² |
| Cross-section of cable to be connected, min. | 2,5 mm² |
| Clamping range D, max. | 22 mm |
| Clamping range D, min. | 8 mm |
| Dimension | 8-22mm |
| Surface | Nickel-plated |
| Material | Brass |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1124 kg CO2e / 1 Piece |

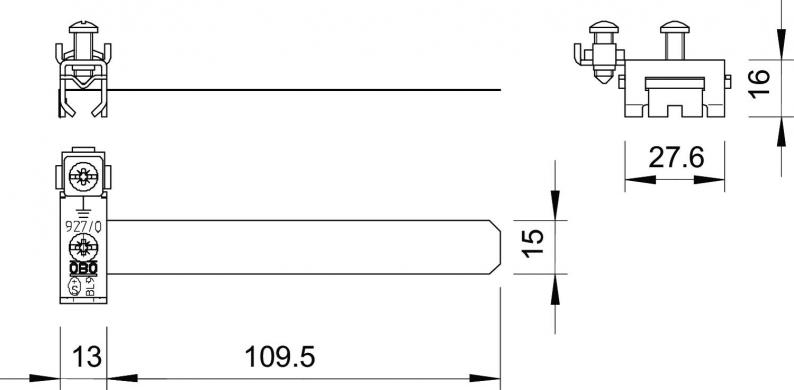

Dimensions
| Dimension L | 109,5 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Item no.
927 0
109,5
5057507
927 0
Item no.
5057507
Dimension L
109,5
