Duct clamp, LKM, for the maintenance of electrical function E30–E90, for LKM cable duct LKM 80080
Type LKM KF60100 | Item no. 6249881 | EAN 4012195685081
Item no. / Type
6249881 / LKM KF60100
Smallest selling unit: 10 piece
10piece
Description

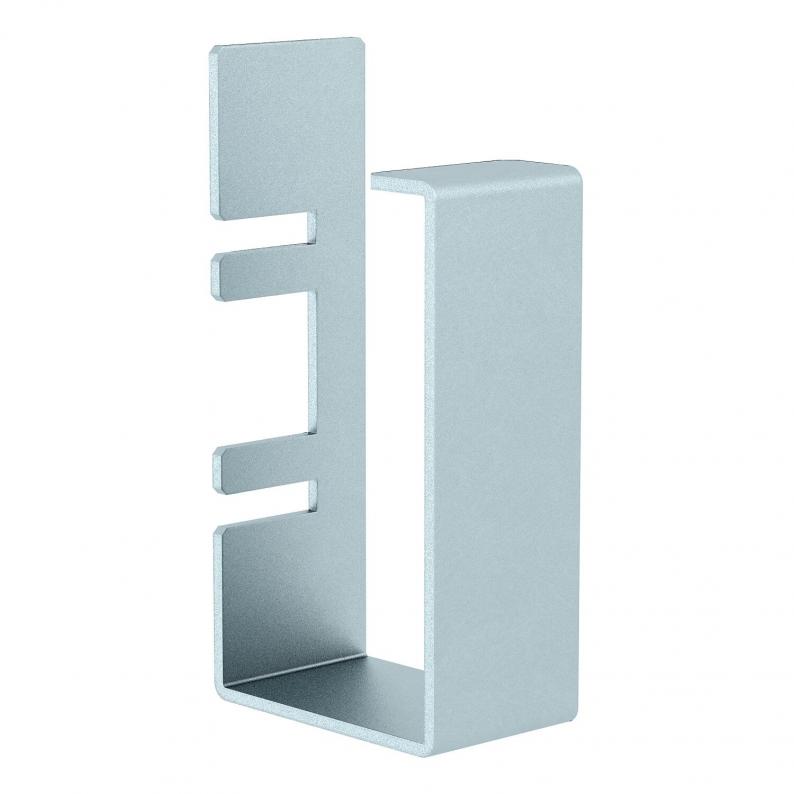

Duct clamp for the metal cable routing duct type LKM 60100, prevents the cables falling out during installation. The duct clamp is essential if the duct is used in cable systems with integrated maintenance of electrical function to DIN 4102, Part 12. Easy mounting through insertion into the loop perforation and interconnection in the side wall.
Technical data

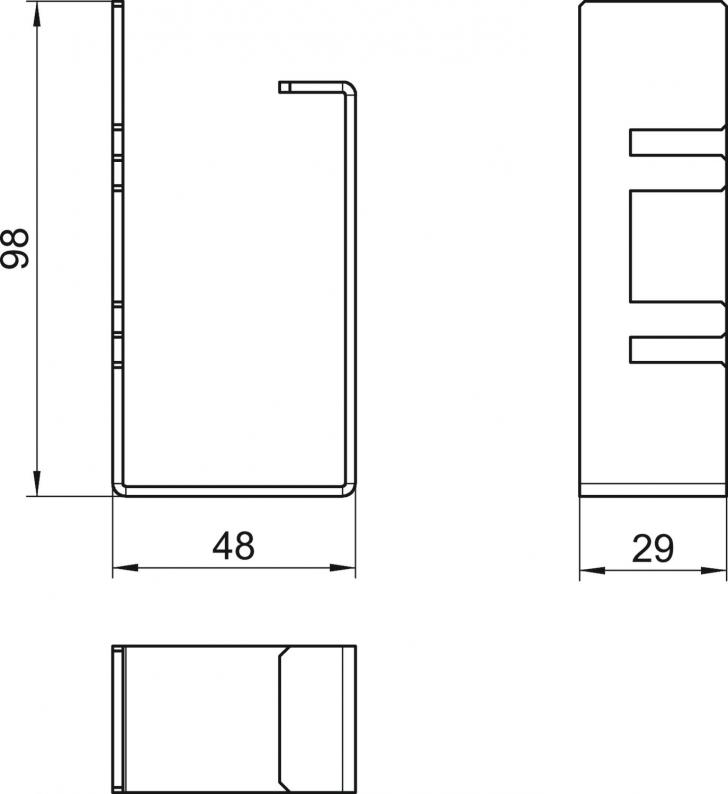

Dimensions
| Length | 29 mm |
|---|---|
| Width | 98 mm |
| Height | 48 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| for duct dimension | 60 x 100 |
| Halogen-free | yes |
| Self-extinguishing | no |
| Protection rating | IP30 |
| With equipotential bonding | no |
| Protection rating IK code | IK10 |
| Fastening type | Lockable |
| Cover width | 100 mm |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 98x48x29mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3317 kg CO2e / 1 Piece |
