Deskbox DBK, 2 BS sockets, 2 x USB (USB 3.0 Type A)

Type DBK2-MU4 BS SEA1 | Item no. 6116849 | EAN 4012196562947

Item no. / Type
6116849 / DBK2-MU4 BS SEA1

Smallest selling unit: 20 piece

Description

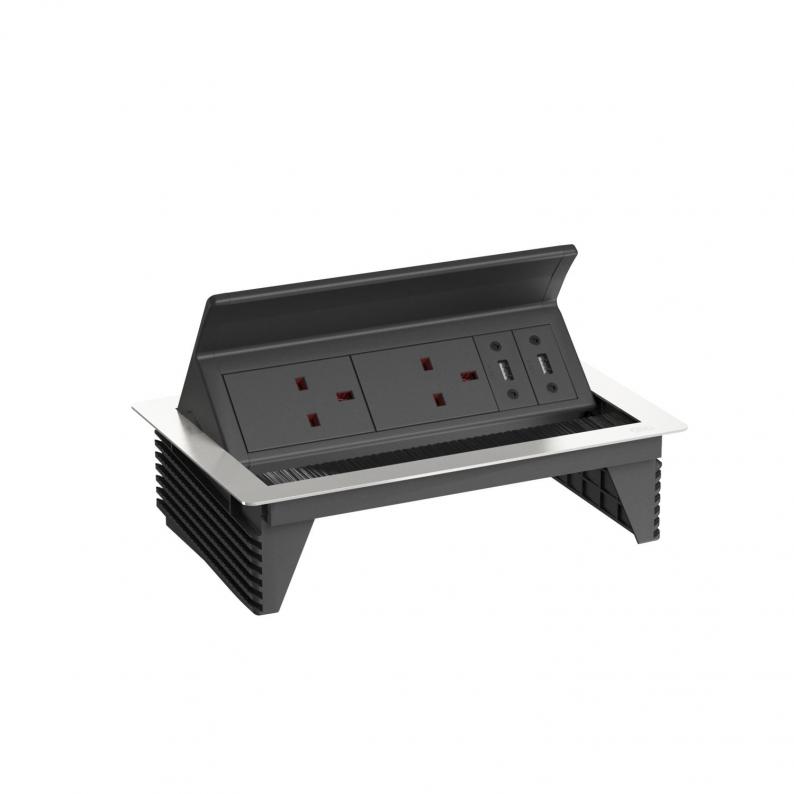

The ready-for-connection, foldable DBK Deskbox ensures a direct supply of the workplace with power, data and multimedia technology. The Deskbox is equipped with a connection cable, which runs out of the profile from below. The visible surface is made of brushed stainless steel and equipped with a brush bar as a cable outlet.
The Deskbox is equipped with two black British Standard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable. In addition, two USB connections (USB 3.0, type A) are mounted, each with a 3 m connection cable with USB connector (type A).
The ready-for-connection type DBK Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.

The Deskbox is permanently installed in a tabletop with a thickness of up to 50 mm. It is mounted in an installation opening of 245 x 157 mm.

Technical data

Dimensions

Length260 mm

Technical data

Surge protectionno
Installation depth68 mm
Number of HDMI connections0
Number of VGA connections0
Number of USB connections2
Number of audio connections0
Number of CAT 5 connections0
Number of CAT 5E connections0
Number of CAT 6 connections0
Foldableyes
Extendableno
Length of the supply cable3 m
MaterialStainless steel 1.4301

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

DBK2-MU4 BS SEA1
Item no.
6116849
