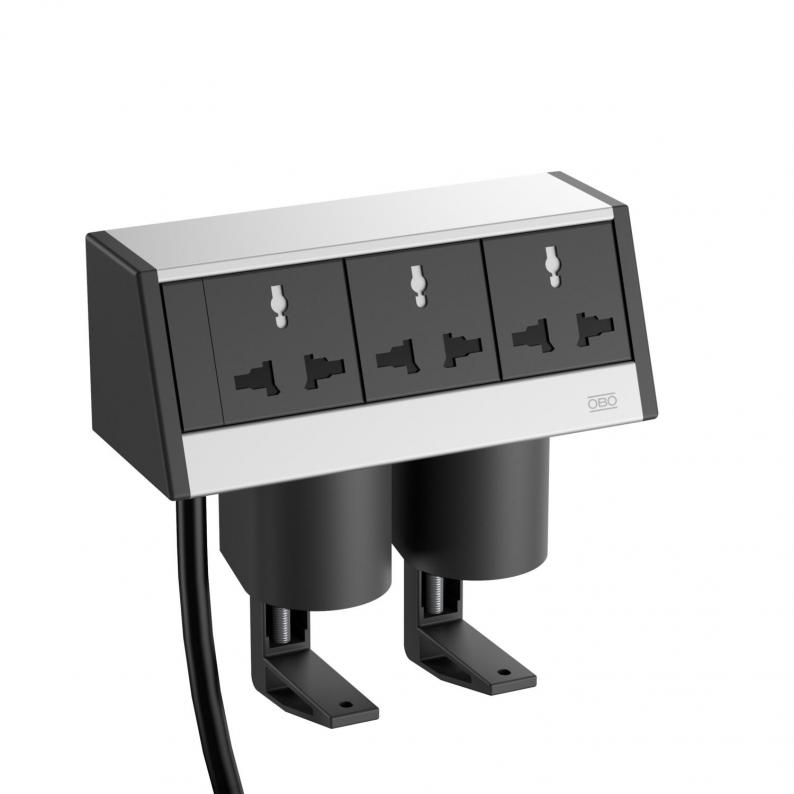

Deskbox DB, with fastening clamp, 3 MS sockets
Type DB-1 MS3 SEA1 | Item no. 6116902 | EAN 4012196562831



Item no. / Type
6116902 / DB-1 MS3 SEA1
Version for
Housing, silver anodised
Smallest selling unit: 20 piece
20piece
Description
The DB Deskbox ensures a direct supply of the workplace with power, data and multimedia technology and is suitable for fixed attachment to a tabletop. The Deskbox is equipped with a connection cable, which runs out of the profile from below. The housing consists of an anodised, silver-coloured aluminium profile.
The Deskbox is equipped with three black British Multistandard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable.
The Deskbox is equipped with three black British Multistandard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable.
The Deskboxes can be mounted simply on a tabletop with 2 fastening vices, without damaging the tabletop. Mounting is possible on a table top with a thickness of 8 to 40 mm.
Technical data

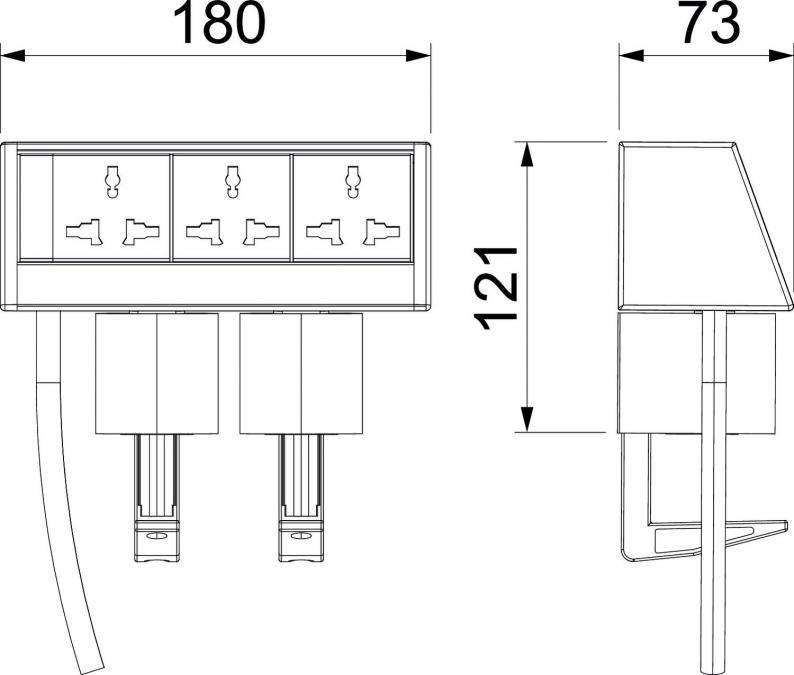

Dimensions
| Length | 179 mm |
|---|---|
| Height | 121 mm |
Technical data
| Surge protection | no |
|---|---|
| Number of HDMI connections | 0 |
| Number of VGA connections | 0 |
| Number of USB connections | 0 |
| Number of audio connections | 0 |
| Number of CAT 5 connections | 0 |
| Number of CAT 5E connections | 0 |
| Number of CAT 6 connections | 0 |
| Foldable | yes |
| Extendable | no |
| Length of the supply cable | 3 m |
| Version for | Housing, silver anodised |
| Material | Aluminium |
