Deskbox DB, with fastening clamp, 2 MS sockets, 2 x (USB 3.0 Type A)
Type DB-MU1 MS SEA1 | Item no. 6116906 | EAN 4012196562879



Item no. / Type
6116906 / DB-MU1 MS SEA1
Version for
Housing, silver anodised
Smallest selling unit: 20 piece
20piece
Description

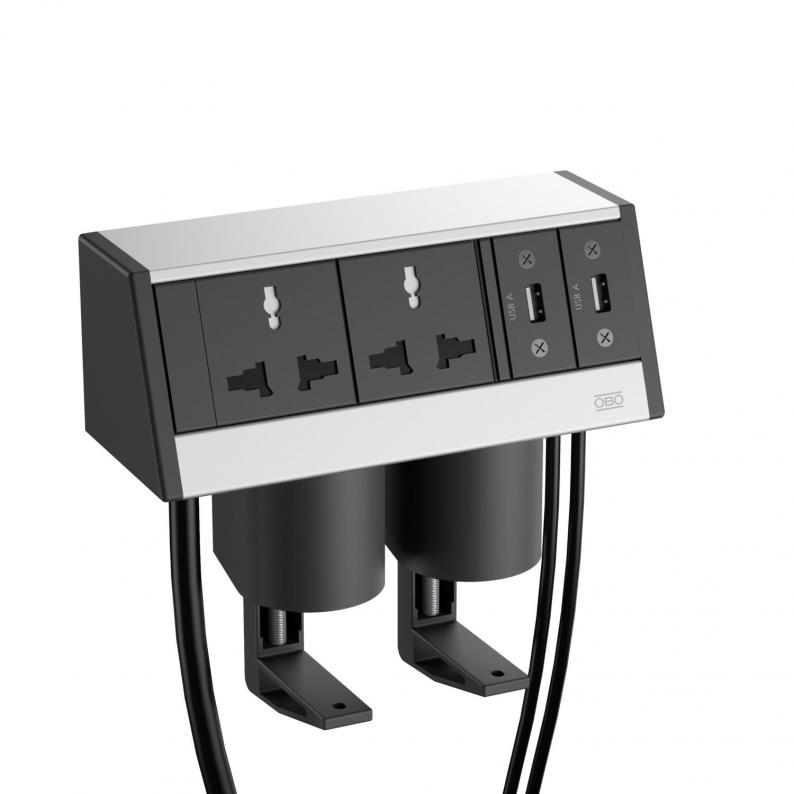

The DB Deskbox ensures a direct supply of the workplace with power, data and multimedia technology and is suitable for fixed attachment to a tabletop. The Deskbox is equipped with a connection cable, which runs out of the profile from below. The housing consists of an anodised, silver-coloured aluminium profile.
The Deskbox is equipped with two black British Multistandard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable. In addition, two USB connections (USB 3.0, type A) are mounted, each with a 3 m connection cable with USB connector (type A).
The Deskbox is equipped with two black British Multistandard sockets, which are equipped with a 3 m power cable with wire end sleeves at the end of the cable. In addition, two USB connections (USB 3.0, type A) are mounted, each with a 3 m connection cable with USB connector (type A).
The Deskboxes can be mounted simply on a tabletop with 2 fastening vices, without damaging the tabletop. Mounting is possible on a tabletop with a thickness of 8 to 40 mm.
Technical data

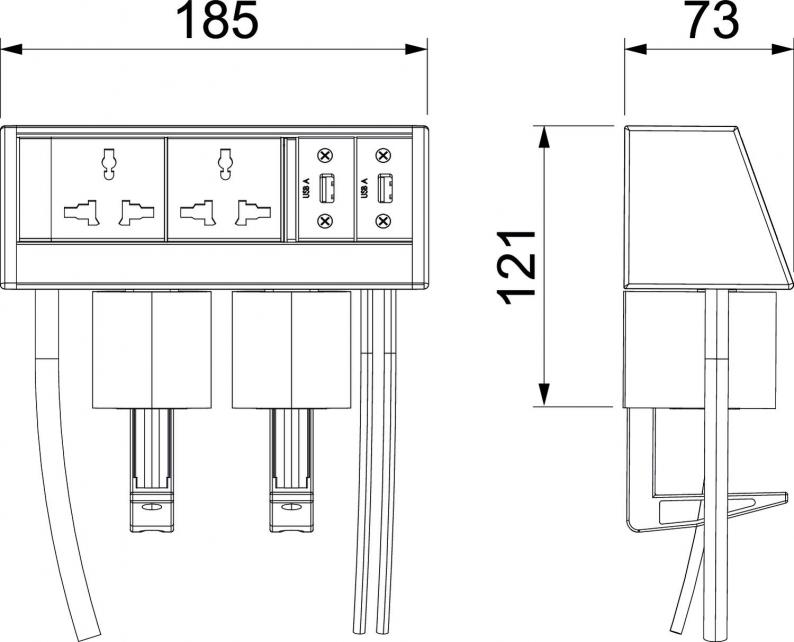

Dimensions
Length | 184 mm |
---|---|
Height | 121 mm |
Technical data
Surge protection | no |
---|---|
Number of HDMI connections | 0 |
Number of VGA connections | 0 |
Number of USB connections | 2 |
Number of audio connections | 0 |
Number of CAT 5 connections | 0 |
Number of CAT 5E connections | 0 |
Number of CAT 6 connections | 0 |
Foldable | yes |
Extendable | no |
Length of the supply cable | 3 m |
Version for | Housing, silver anodised |
Material | Aluminium |
