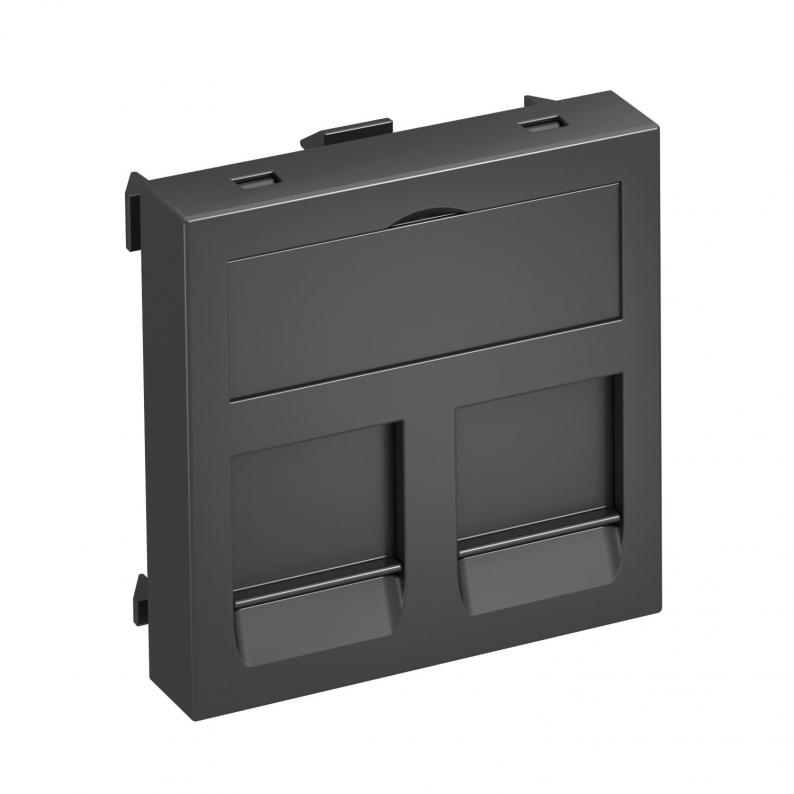

Data technology support, 1 module, straight outlet, type PA
Type DTG-2PA SWGR1 | Item no. 6119228 | EAN 4012195697053



Item no. / Type
6119228 / DTG-2PA SWGR1
With dust protection
yes
Colour
Black-grey; RAL 7021
Smallest selling unit: 1 piece
1piece
Description
Data technology support with straight outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type PA has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type PA data technology support is suitable for accepting the following data connection modules: Panduit: Mini-Com.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
The type PA data technology support is suitable for accepting the following data connection modules: Panduit: Mini-Com.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.
Technical data

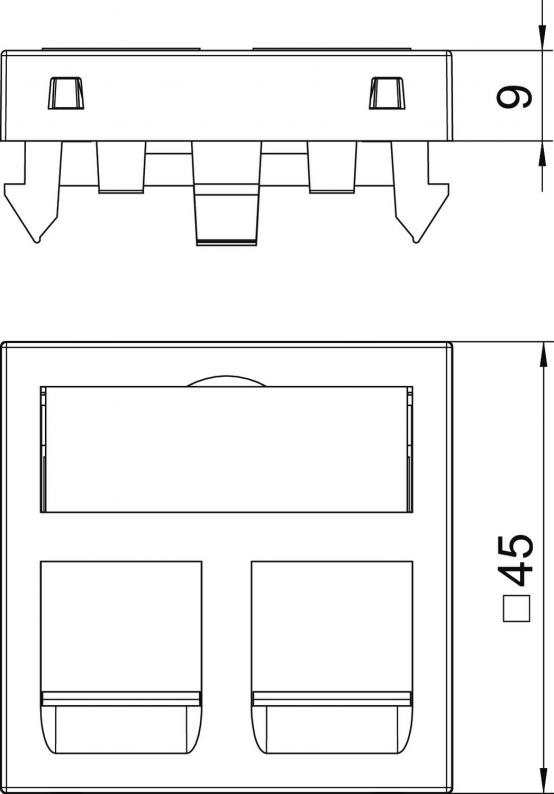

Dimensions
Width | 45 mm |
---|---|
Height | 45 mm |
Technical data
Hinged cover | no |
---|---|
Halogen-free | yes |
Strain relief option | no |
Protection rating | IP20 |
Support ring | no |
With dust protection | yes |
With printed label | no |
Lamp-wire connector | no |
Depth | 9 mm |
Surface version | Matt |
Transparent | no |
Combination | Basic element with central cover plate |
Use | Installable data connector |
Labelling panel | With labelling panel |
Fastening type | Lock |
Mounting opening | Type PA |
Dimension | 45x45mm |
Material | Polycarbonate |
Colour | Black-grey; RAL 7021 |
CO2 Footprint (GWP) Cradle-to-Gate | 0,1538 kg CO2e / 1 Piece |
