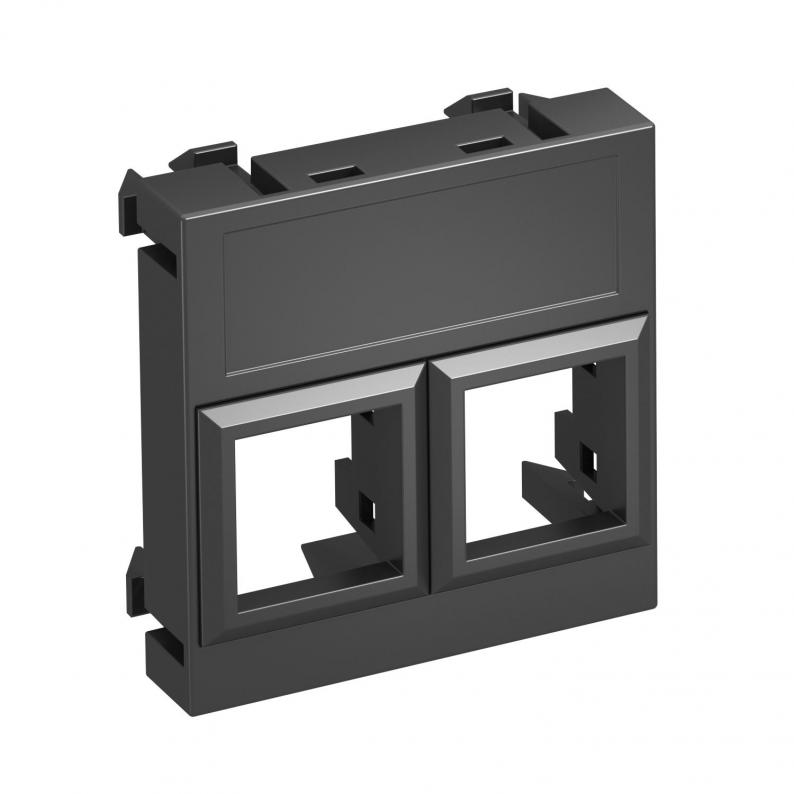

Data technology support, 1 module, straight outlet, type LE

Data technology support, 1 module, straight outlet, type LE

Type DTG-02LE SWGR1 | Item no. 6119306 | EAN 4012195925507

Show all variants
Item no. / Type
6119306 / DTG-02LE SWGR1
With dust protection
no
Colour
Black-grey; RAL 7021

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Data technology support with straight outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type LE has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.
The type LE data technology support is suitable for accepting the following data connection modules: LexCom/Schneider: LexCom 125, LexCom 250 and LexCom 500.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.


  • CO₂ footprint (PCF)

Technical data

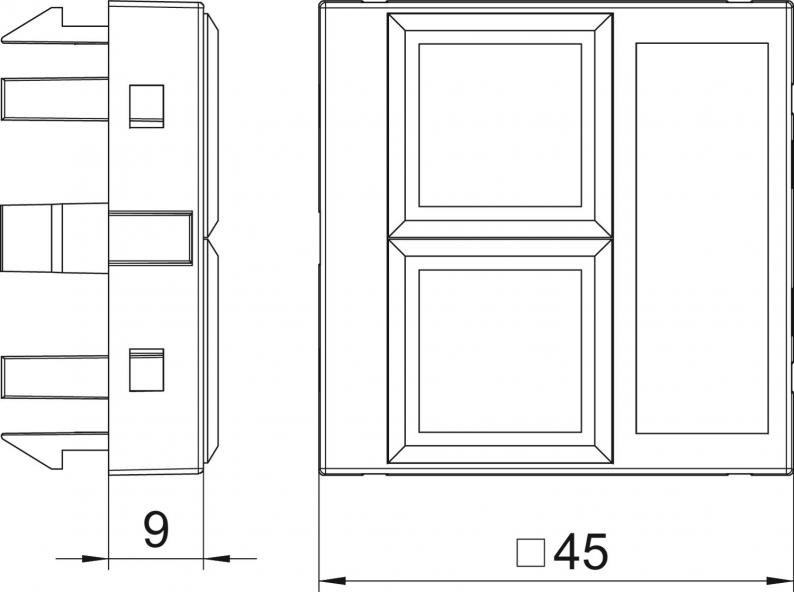

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth9 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseInstallable data connector
Labelling panelWith labelling panel
Fastening typeLock
Mounting openingType LE
Dimension45x45mm
MaterialPolycarbonate
ColourBlack-grey; RAL 7021
CO2 Footprint (GWP) Cradle-to-Gate0,0431 kg CO2e / 1 Piece
