Type GEK-KOT45 | Item no. 6116108 | EAN 4012196708970
Item no. / Type
6116108 / GEK-KOT45
Colour
Pure white; RAL 9010
Smallest selling unit: 2 m
2m
Description

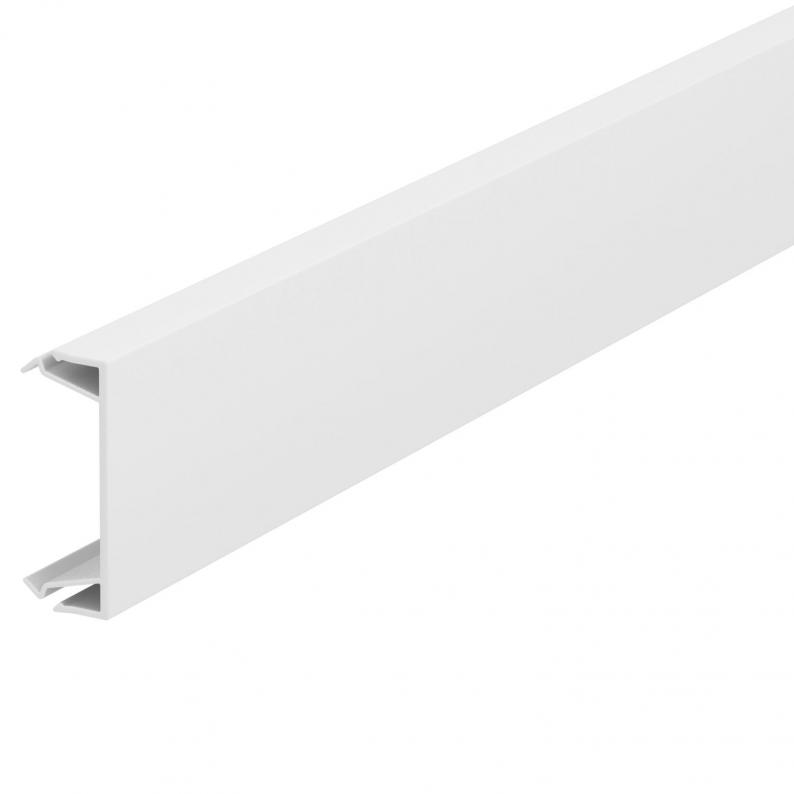

Trunking cover for closing the Rapid 45 device installation trunking.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|

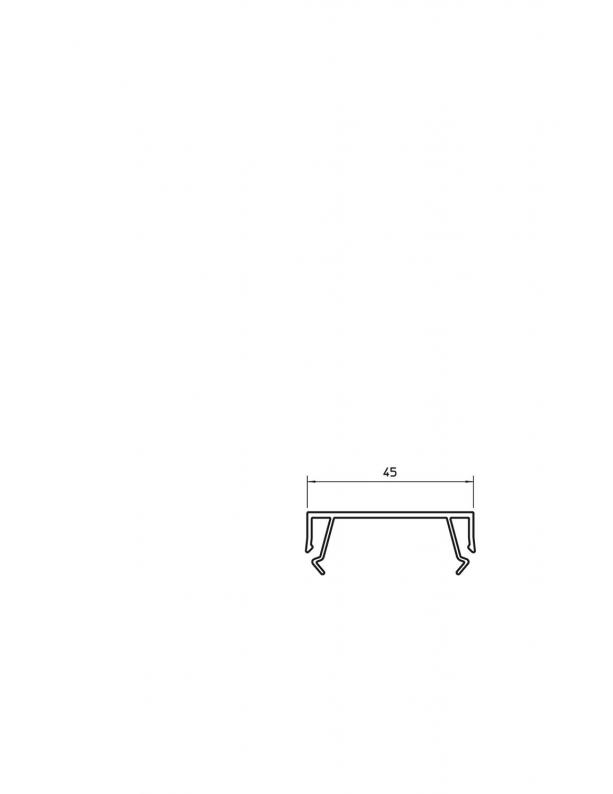

| Width | 45 mm |
Technical data
| Halogen-free | no |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Version for | Smooth |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 45x2000mm |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4061 kg CO2e / 1 Meter |
