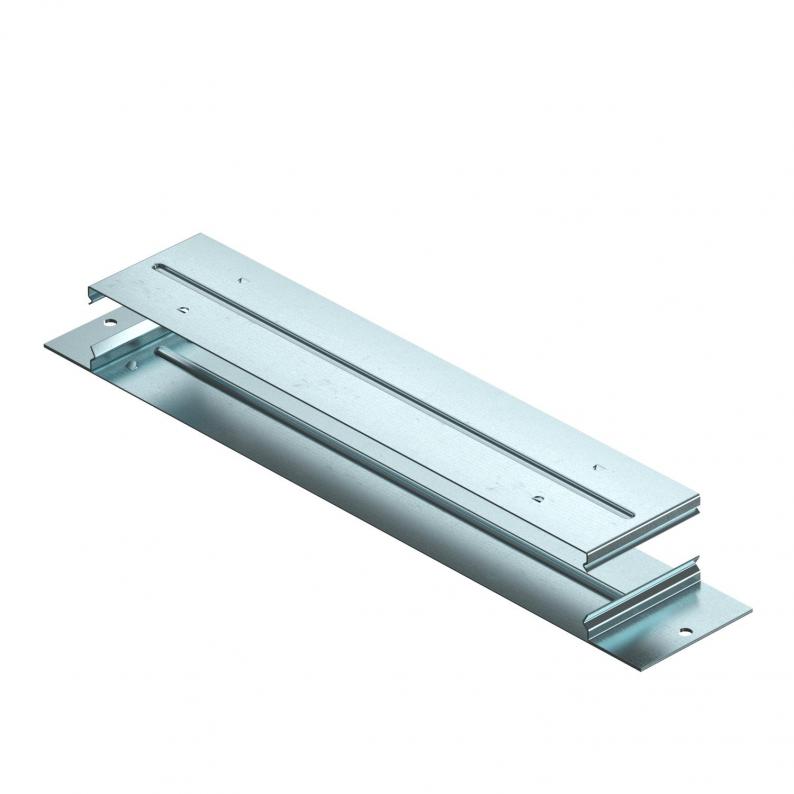

Connection shackle, conductive, for EÜK-2
Type VL 350-2 | Item no. 7400996 | EAN 4012197349875
Item no. / Type
Width
Trunking width, min.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
Description
Connection shackle for mounting screed-covered underfloor installation ducts. The connection shackle snaps in to the duct sidewalls.
The electrical conductivity is ensured via the snap-in connection.
Technical data
Dimensions
| Length | 423 mm |
|---|---|
| Width | 75 mm |
| Dimension a | 350 mm |
Technical data
| Trunking width, min. | 350 mm |
|---|---|
| Seal installation option | no |
| Floor plate | yes |
| With equipotential bonding | yes |
| Removable cover | yes |
| Suitable for expansion joint | yes |
| Version for | Strap |
| Duct height, min. | 28 mm |
| Trunking height, max. | 58 mm |
| Dimension | 423x75x28,2 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2825 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Trunking width, min.
Duct height, min.
Trunking height, max.
Item no.
VL 190-2
75
190
28
48
7400988
VL 350-2
75
350
28
58
7400996
VL 250-2
75
250
28
58
7400992
