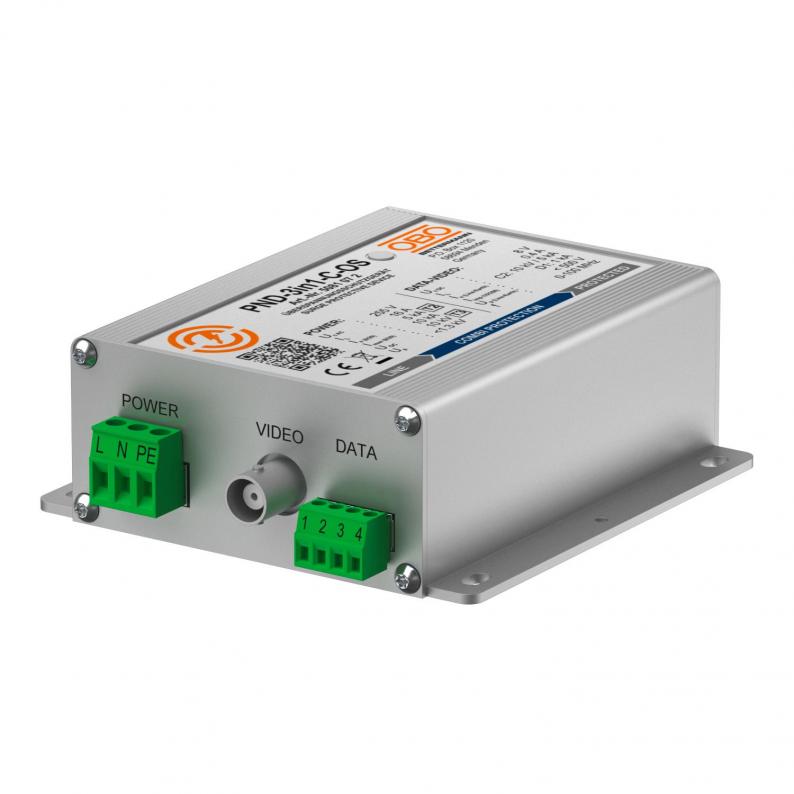

Combined protection device 3in1 for CCTV camera systems

Combined protection device 3in1 for CCTV camera systems

Type PND-3in1-C-OS | Item no. 5081072 | EAN 4012196676972

Show all variants
Item no. / Type
5081072 / PND-3in1-C-OS
Plug-in system
BNC

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Combination protection device for coaxial TV/camera systems


• Protection of power and data interfaces in a single device

• In aluminium housing

• Simple mounting with adapter

• Two-stage protection circuit

• Three-pole power connection for the power interface

• With LED operation display (OS)

• Incl. DIN rail fastening set



Application: Protection of CCTV, video signals, cameras and/or TV systems
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Transition from LPZ 0 to LPZ 2
  • TV applications
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

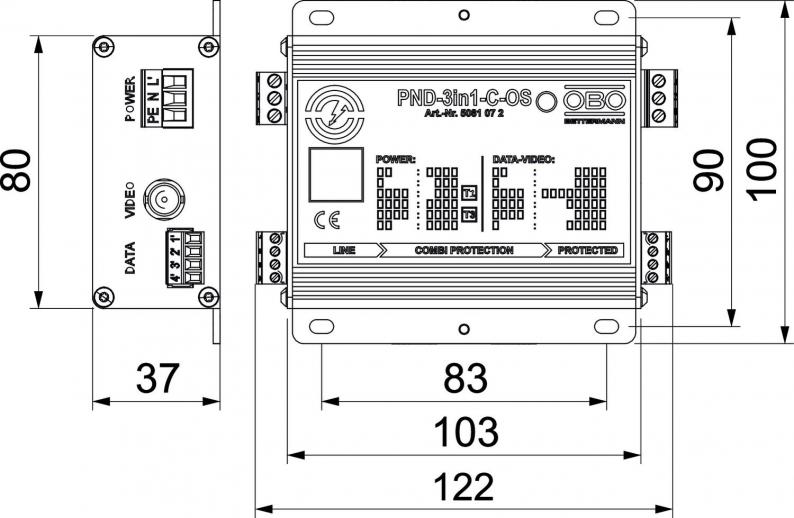

Dimensions

Length122,5 mm
Width100 mm
Height37,1 mm

Technical data

Plug-in systemBNC
Protection ratingIP20
Maximum continuous voltage (L-N)255 V
Channel performance Ansi/EACAT 5e
Channel performance ISO/IECClass E
Earthing via:Connection cable / DIN rail
Nominal discharge current (8/20 µs)5 kA
SPD to IEC 61643-1Class II+III
SPD to EN 61643-11Type 2+3
Lightning protection zone LPZ1→3
Protection level<1,3 kV
Maximum discharge current (8/20 μs)10 kA
Rated current16 A
Permitted temperature range, max.80 °C
Permitted temperature range, min.-20 °C
Dimension230V
CO2 Footprint (GWP) Cradle-to-Gate2,4524 kg CO2e / 1 Piece
