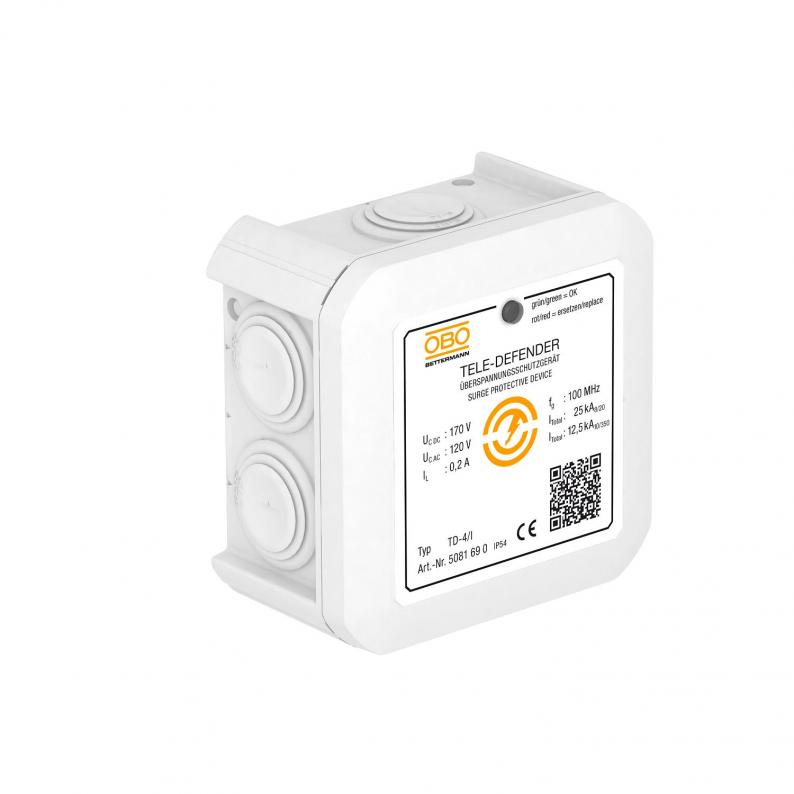

Combination protection device TD-4/I for ISDN and DSL systems

Combination protection device TD-4/I for ISDN and DSL systems

Type TD-4/I | Item no. 5081690 | EAN 4012196034352

Show all variants
Item no. / Type
5081690 / TD-4/I
Number of poles
4
Plug-in system
RJ11

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Data cable protection device for telecommunications equipment

• Low protection level at a high current load
• "Push-in" terminals for quick installation
• Bandwidth-optimised for secure transmission
• Surface mounting
• Visual function display
Application: DSL systems, IP connections, ISDN or analogue telecommunications
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Transition from LPZ 0 to LPZ 3
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Number of poles4
Telecommunications contactno
Signalling on deviceVisual
Plug-in systemRJ11
Protection level wire-wire<300 V
Protection level wire-earth<650 V
Protection ratingIP54
Testing standardIEC 61643-21
Series resistance per wire9 Ω ± 10 %
Capacity (wire-wire)<50 pF
Capacity (wire-earth)<10 pF
Explosion-tested versionno
Insulation resistance>1 MΩ
Shielding connection availableyes
ScreeningIndirect
Impulse durability wire-wireC2: 18 kV / 9 kA (8/20µs)
Impulse durability wire-earthC2: 18 kV / 9 kA (8/20µs)
Total discharge current (10/350)D1: 12,5 kA
Total discharge current (8/20)25 kA
Protection level, shield-earth (S-PE)850 V
Nominal load current DC0,2 A
Nominal load current AC0,14 A
Arrestor monitoringno
Maximum continuous voltage AC120 V
Maximum continuous voltage DC170 V
Cut-off frequency100 MHz
SPD to IEC 61643-21Class I+II+III / D1+C2+C1
KategorieType 1+2+3 / D1+C2+C1
Lightning protection zone LPZ0→3
Lightning impulse current2,5 kA
Insertion loss≤3 dB
Connection cross-section, rigid, max.0,75 mm²
Connection cross-section, multi-wire, max.0,75 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C

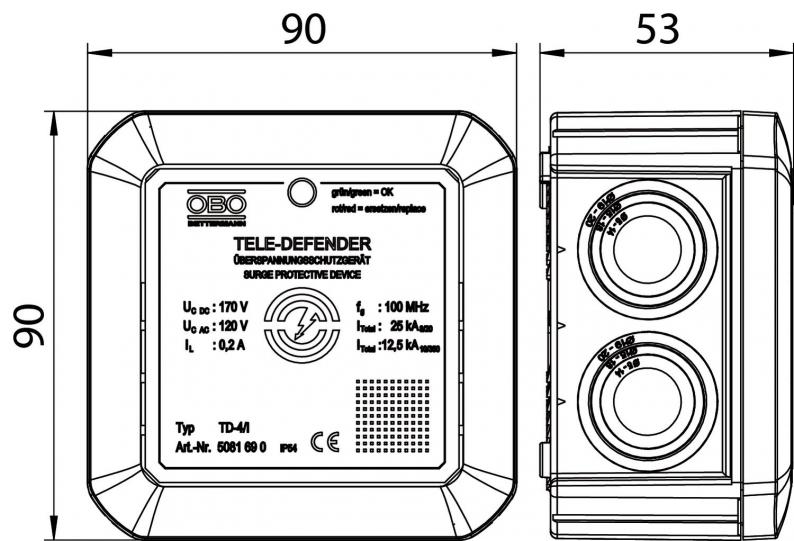

Dimension170V
MaterialPlastic
ColourWhite
CO2 Footprint (GWP) Cradle-to-Gate0,4171 kg CO2e / 1 Piece

Connectivity options

Connection cross-section, rigid, min.0,14 mm²
Connection cross-section, flexible, max.0,75 mm²
Connection cross-section, flexible, min.0,14 mm²
