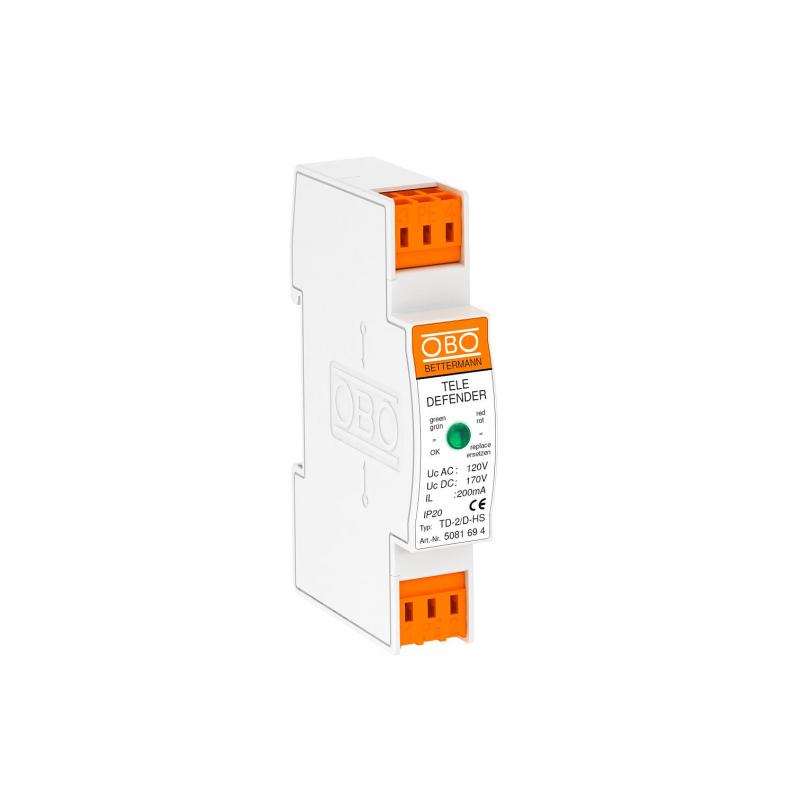

Combination protection device for ISDN and DSL systems

Combination protection device for ISDN and DSL systems

Type TD-2/D-HS | Item no. 5081694 | EAN 4012196087723

Show all variants
Item no. / Type
5081694 / TD-2/D-HS
Number of poles
2
Plug-in system
Terminal

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Data cable protection devices for telecommunication systems


• Low protection level at high current load

• Screwless terminals or connectable

• Bandwidth-optimised for secure transmission

• Quick mounting onto DIN rail for a telephone line

• Visual function display


Application: DSL systems, ISDN or analogue telecommunication
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 20
  • Transition from LPZ 0 to LPZ 2
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

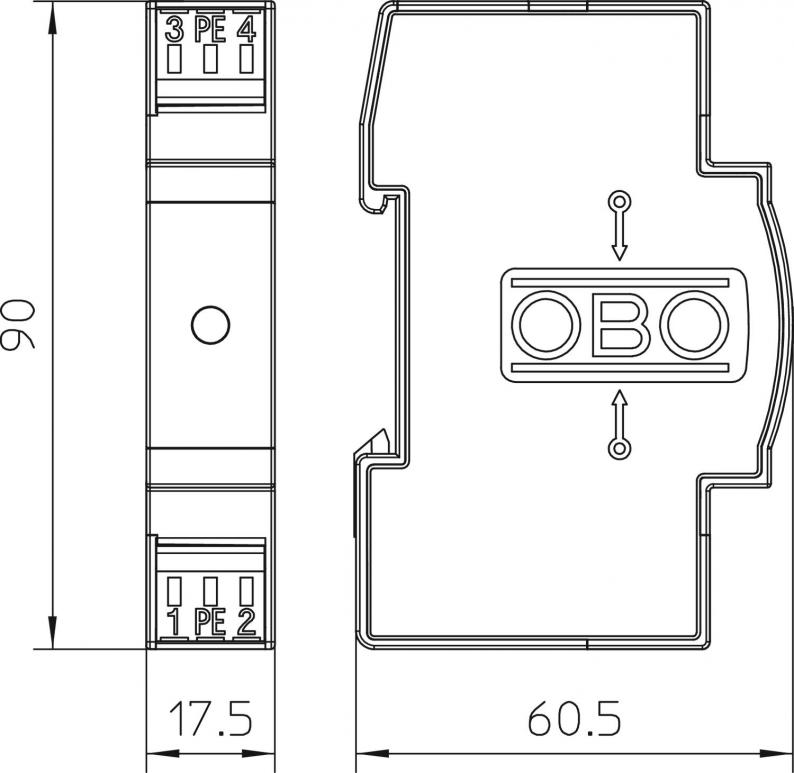

Technical data

Technical data

Number of poles2
Telecommunications contactno
Signalling on deviceVisual
Plug-in systemTerminal
Protection level wire-wire<300 V
Protection level wire-earth<650 V
Protection ratingIP20
Testing standardIEC 61643-21
Series resistance per wire9 Ω ± 10 %
Capacity (wire-wire)<50 pF
Capacity (wire-earth)<50 pF
Earthing via:Connection cable
Explosion-tested versionno
Insulation resistance>1 MΩ
Shielding connection availableno
ScreeningDirect
Impulse durability wire-wireC2: 18 kV / 9 kA (8/20µs)
Impulse durability wire-earthC2: 18 kV / 9 kA (8/20µs)
Total discharge current (10/350)D1: 5 kA
Total discharge current (8/20)10 kA
Nominal load current DC0,2 A
Nominal load current AC0,14 A
Arrestor monitoringno
Maximum continuous voltage AC120 V
Maximum continuous voltage DC170 V
Cut-off frequency75 MHz
SPD to IEC 61643-21Class I+II+III / D1+C2+C1
KategorieType 1+2+3 / D1+C2+C1
Lightning protection zone LPZ0→3
Lightning impulse current2,5 kA
Insertion loss≤3 dB
Division unit TE (17.5 mm)1
Connection cross-section, rigid, max.2,5 mm²
Connection cross-section, multi-wire, max.2,5 mm²
Connection cross-section, multi-wire, min.0,14 mm²
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Dimension170V
MaterialPlastic
ColourWhite
CO2 Footprint (GWP) Cradle-to-Gate0,2096 kg CO2e / 1 Piece
