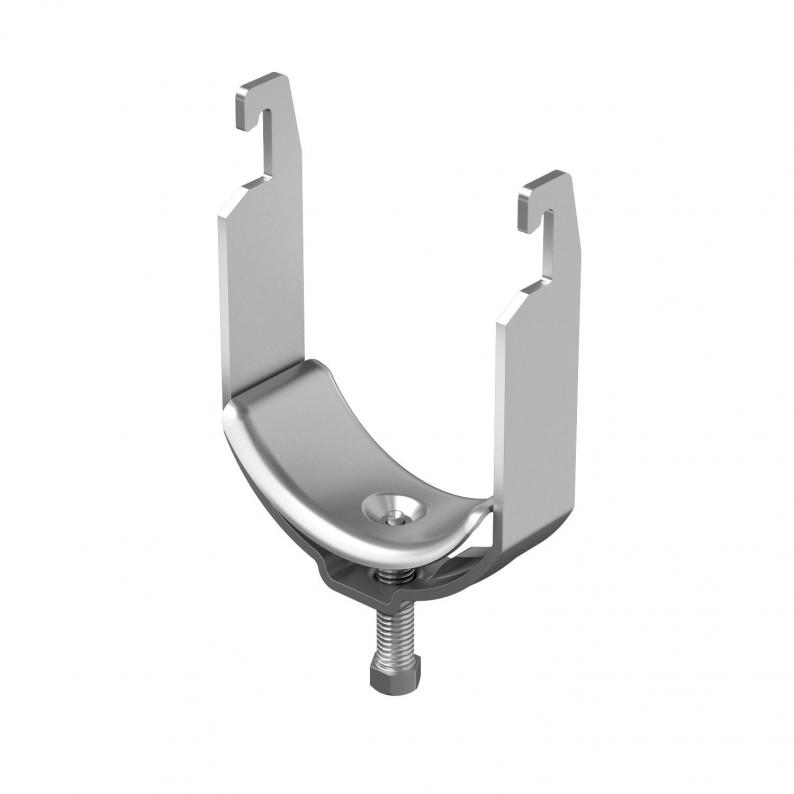

Clamp clip, single, A4 metal pressure trough
Type 2056U M 70 A4
|Item no. 1158247
|EAN 4012195912354
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Technical data
Technical data
| for rail with slot width (with interval), min. | 18 mm |
|---|---|
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 64 mm |
| Clamping range D, max. | 70 mm |
| Dimension | 64-70mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| With counter-trough | no |
| Material of trough | Rustproof steel |
| Material quality of trough | Other |

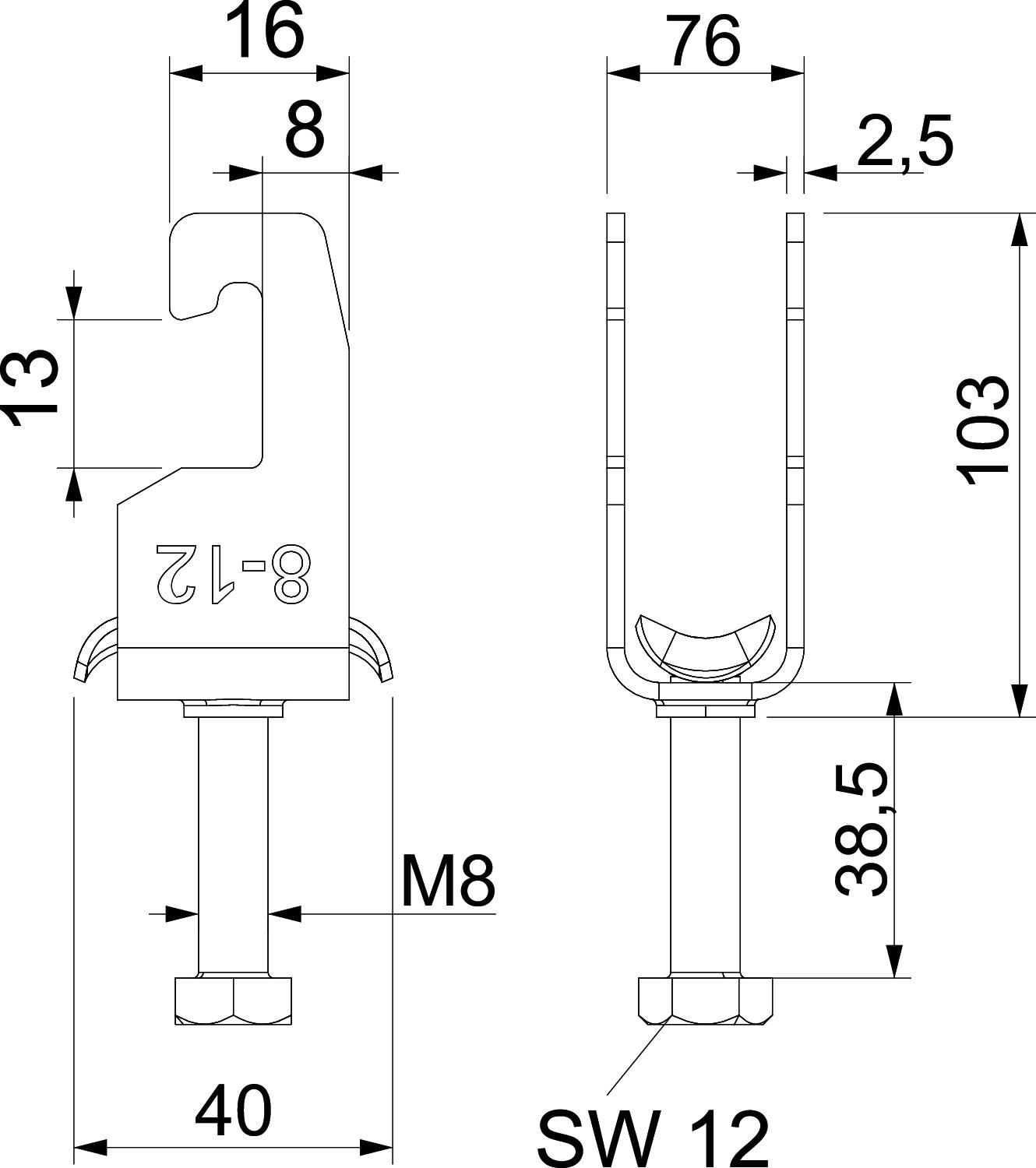

Dimensions
| Dimension L | 30 mm |
|---|---|
| Dimension B | 76 mm |
| Dimension H | 105,5 mm |
| Dimension t | 2,5 mm |
| Dimension C | 40 mm |
| Dimension G (mm) | M8 |
Environmental Data
0,7565 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7565 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U M 12 A4
3
8
12
1158207
2056U M 16 A4
3
12
16
1158211
2056U M 22 A4
3
16
22
1158215
2056U M 28 A4
3
22
28
1158219
2056U M 34 A4
5
28
34
1158223
2056U M 40 A4
5
34
40
1158227
2056U M 46 A4
5
40
46
1158231
2056U M 52 A4
5
46
52
1158235
2056U M 58 A4
5
52
58
1158239
2056U M 64 A4
5
58
64
1158243
2056U M 70 A4
5
64
70
1158247
2056U M 76 A4
5
70
76
1158251
