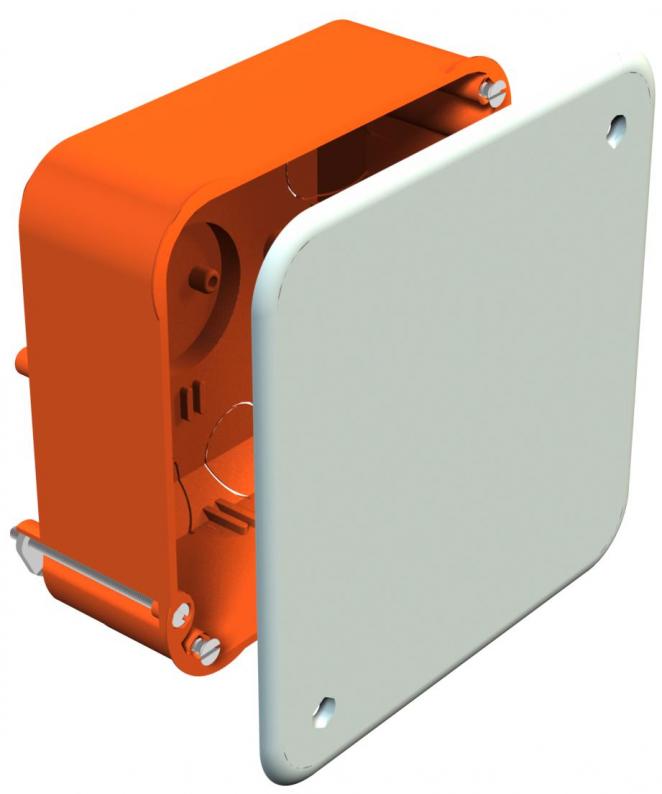

Cavity wall connection box
Type HV 100 KD
|Item no. 2003449
|EAN 4012195033011
Item no. / Type
2003449 / HV 100 KD
Height
50 mm
No. of entries
20
for pipe diameter
20 mm
Smallest selling unit: 25 piece
25piece
piece
Description
Cavity wall connection box for use in cavity walls with an installation depth of at least 50 mm and a plate thickness of 7-35 mm. With white cover and cover screws. Suitable for installation of standard rails (hat and support rails) for series terminals.
• 8 entries of Ø 20 mm
• 8 entries for NYM cables 3 x 1.5 mm²
• 4 entries for data cables (extra-low voltage)
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
• 8 entries of Ø 20 mm
• 8 entries for NYM cables 3 x 1.5 mm²
• 4 entries for data cables (extra-low voltage)
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
Technical data
Dimensions
| Length | 105 mm |
|---|---|
| Width | 105 mm |
| Height | 50 mm |
Technical data
| Type of entry | NYM cables, data cables and corrugated pipes |
|---|---|
| Impact-resistant | no |
| Floor height, min. | 50 mm |
| Suitable for plate thickness, min. | 7 mm |
| Suitable for plate thickness, max. | 35 mm |
| Halogen-free | yes |
| No. of entries | 20 |
| Entry from rear | yes |
| Protection rating | IP30 |
| Sealable | no |
| Maintain electrical functions | Without |
| Type of housing penetration | Pre-marking |
| With screening | no |
| for pipe diameter | 20 mm |
| With bolts | yes |
| Airtight | no |
| With nail strap | no |
| Support | Without |
| Max. Conductor cross-section | 4 mm² |
| Nominal cross-section, min. | 2,5 mm² |
| Nominal cross-section, max. | 4 mm² |
| Shape | Square |
| Equipment | Without |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Dimension | 105x105x50 |
| Material | Polypropylene |
| Colour | Orange |
| Rated voltage | 400 V |
Environmental Data
0,0122 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0122 kg CO2e / 1 Piece |
|---|
