Cable gland, metric thread, extra long, black
Type V-TEC VM LL16 SW | Item no. 2022985 | EAN 4012195812166
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Black
Smallest selling unit: 50 piece
50piece
Description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| explosion-proof | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M16 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread increase | 1,8 mm |
| Nominal thread size | 16 |
| Hexagonal corner dimension | 22 mm |
| Sealing area D, max. | 10 mm |
| Sealing area D, min. | 4,5 mm |
| WAF | 20 |
| Version for | Straight |
| Thread length | 24 mm |
| Unstable torque | 2,5 Nm |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M16 |
| Material | Polyamide |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0447 kg CO₂e / 1 Piece |

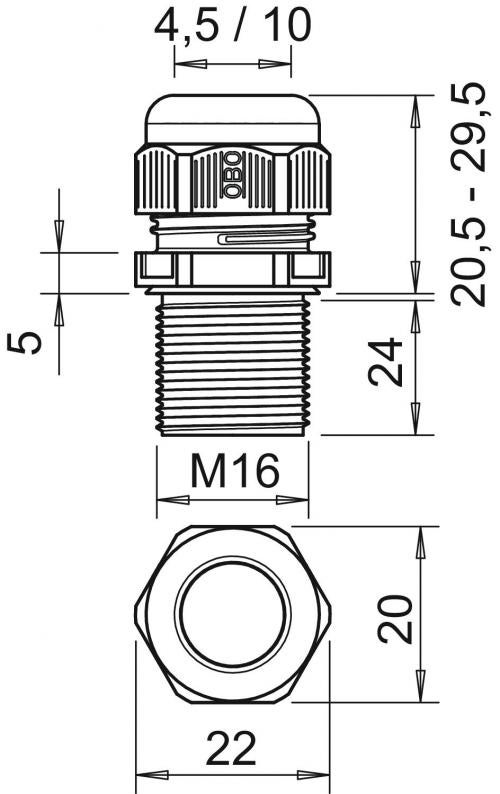

Dimensions
| Dimension L min. | 20,5 mm |
|---|---|
| Dimension L max. | 29,5 mm |
| Dimension L1 | 24 mm |
| Dimension L2 | 5 mm |
| Dimension E | 22 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Thread
Sealing insert, multiple
Colour
Item no.
V-TEC VM LL16 SW
M16 x 1,5
no
Black
2022985
V-TEC VM LL20 SW
M20 x 1,5
no
Black
2022987
V-TEC VM LL25 SW
M25 x 1,5
no
Black
2022989
V-TEC VM LL32 SW
M32 x 1,5
no
Black
2022991
V-TEC VM LL40 SW
M40 x 1,5
no
Black
2022993
V-TEC VM LL63 SW
M63 x 1,5
no
Black
2022997
