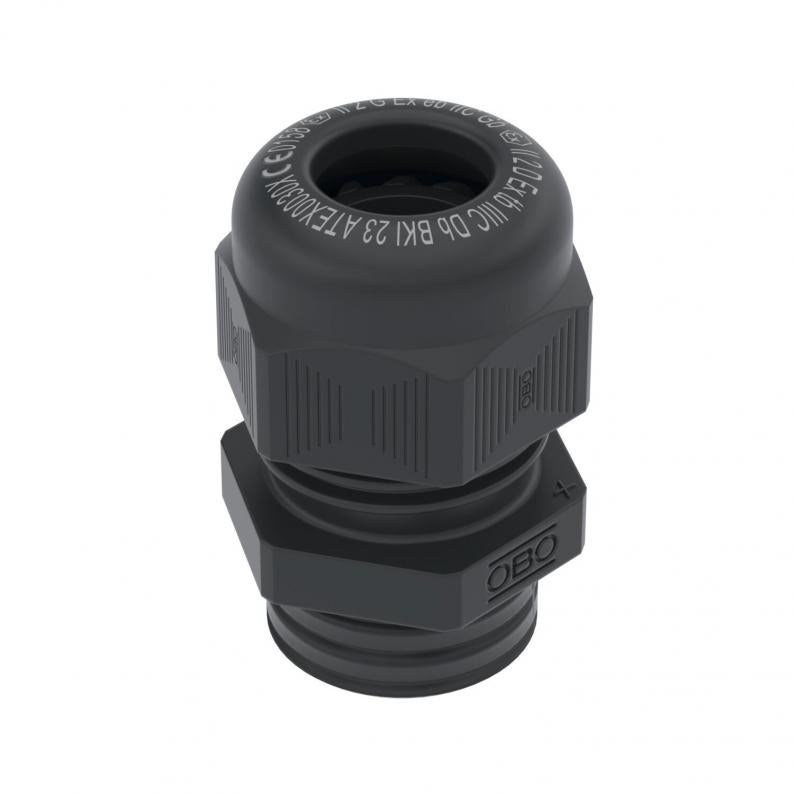

Cable gland, EX area, metric thread, black
Type VTEC EX M20 SW
|Item no. 2050323
|EAN 4012195594734
Item no. / Type
Thread
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland with EU design type approval certificate for products and protection systems for use in accordance with the regulations in explosion-hazard area. Directive 2014/34/EU.
EU design type approval certificate number: BKI23ATEX0030 X.
With metric connecting thread to IEC 423.
Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed.
Protection IP 68 at 3 bar.
EU design type approval certificate number: BKI23ATEX0030 X.
With metric connecting thread to IEC 423.
Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed.
Protection IP 68 at 3 bar.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| explosion-proof | yes |
| Strain relief option | no |
| Protection rating | IP68 |
| Thread | M20 x 1,5 |
| For Ex zone | yes |
| Thread type | Metric |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Splittable gland | no |
| For Ex zone gas | 1, 2 |
| For Ex zone dust | 21, 22 |
| Thread increase | 1,5 mm |
| Nominal thread size | 20 |
| Hexagonal corner dimension | 27 mm |
| Sealing area D, min. | 7 mm |
| Sealing area D, max. | 12 mm |
| WAF | 24 |
| Version for | Straight |
| Thread length | 9 mm |
| Unstable torque | 4 Nm |
| Permitted temperature range, min. | -10 °C |
| Permitted temperature range, max. | 40 °C |
| Dimension | M20 |
| Material | Polyamide |
| Colour | Black |
Dimensions
| Dimension G | M20 mm |
|---|---|
| Dimension L min. | 23 mm |
| Dimension L max. | 30 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 5 mm |
| Dimension E | 27 mm |
Environmental Data
0,0469 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0469 kg CO2e / 1 Piece |
|---|
