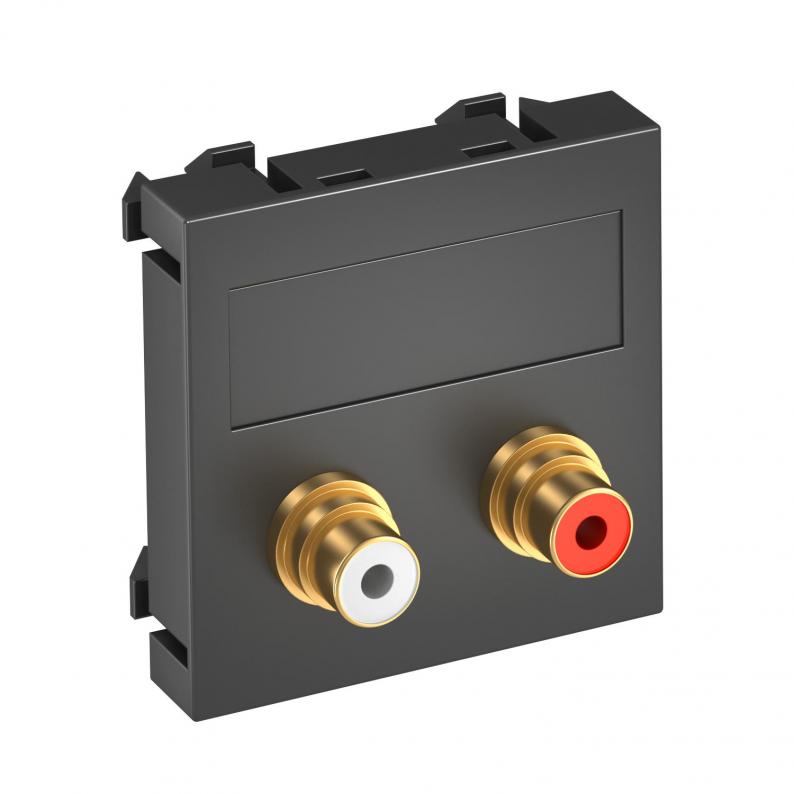

Audio cinch connection, 1 module, straight outlet, as soldered connection, black-grey

Audio cinch connection, 1 module, straight outlet, as soldered connection, black-grey

Type MTG-2R L SWGR1
|
Item no. 6105045
|
EAN 4012195900474
Show all variants
Item no. / Type
Outlet direction
Use
Cinch
Colour
Black-grey; RAL 7021

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Multimedia support with two cinch connection sockets for audio R/L, straight cable outlet, with labelling panel, two cinch sockets (RCA) with soldered connection, colour coding red/white. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseCinch
Fastening typeLock

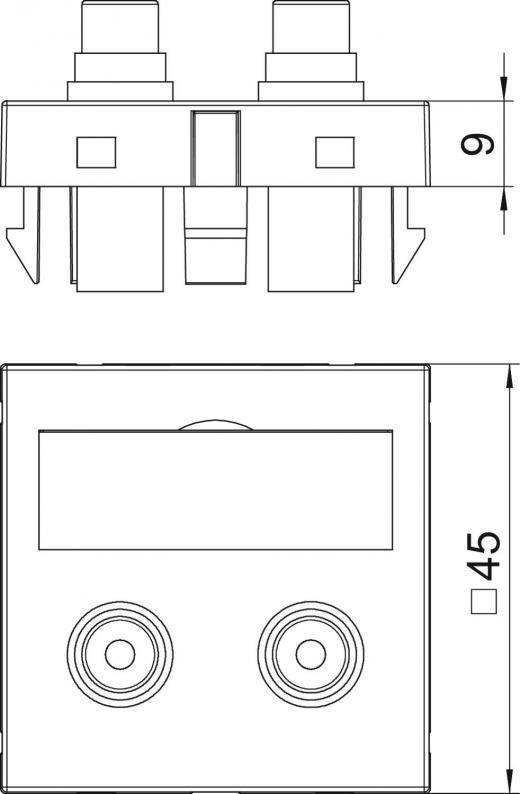

Dimension45x45mm
MaterialPolycarbonate
ColourBlack-grey; RAL 7021
Outlet directionStraight

Environmental Data

0,0737 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0737 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Outlet direction
MTG-2R L SWGR1
Item no.
6105045
Use
Cinch
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTS-2R L SWGR1
Item no.
6105057
Use
Cinch
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
MTG-2R F SWGR1
Item no.
6105069
Use
Cinch
Colour
Black-grey; RAL 7021
Outlet direction
Straight
MTS-2R F SWGR1
Item no.
6105081
Use
Cinch
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
