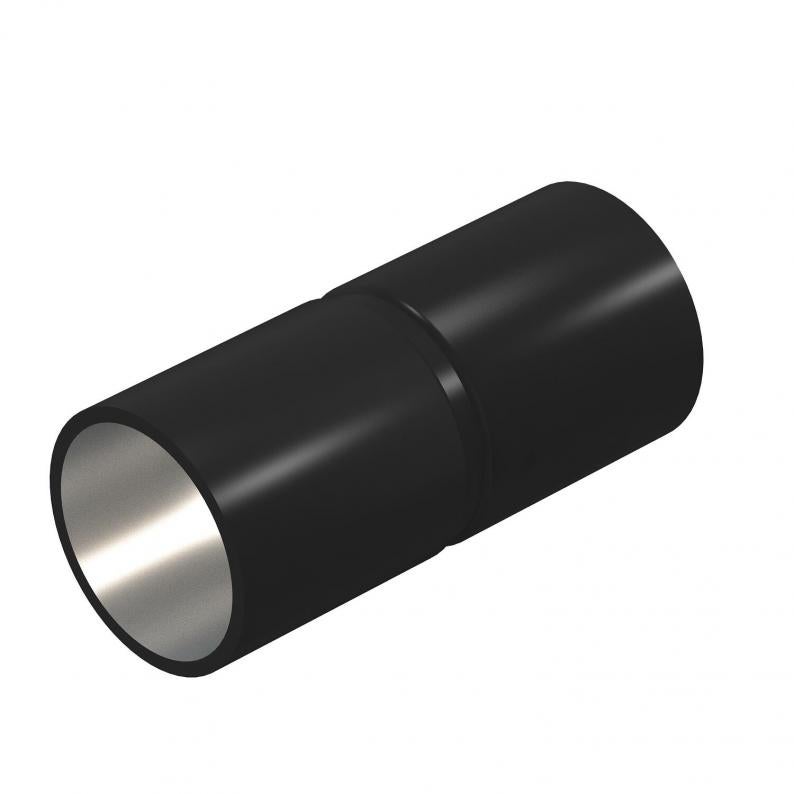

Armoured steel pipe connection sleeve without thread, black

Armoured steel pipe connection sleeve without thread, black

Type SV50W SW
|
Item no. 2046587
|
EAN 4012195781851
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

Description

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length100 mm
Dimension L100 mm
Dimension d51 mm
Dimension t1,5 mm
Dimension m (mm)M50
Dimension l50 mm
Dimension D54 mm

Technical data

Halogen-freeyes
Size50
Polished surfaceno
Brushed surfaceno
for pipe diameter50 mm
With inspection opening and lidno
Two-partno
Version forConnector
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ50mm
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Environmental Data

0,4128 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,4128 kg CO2e / 1 Piece
