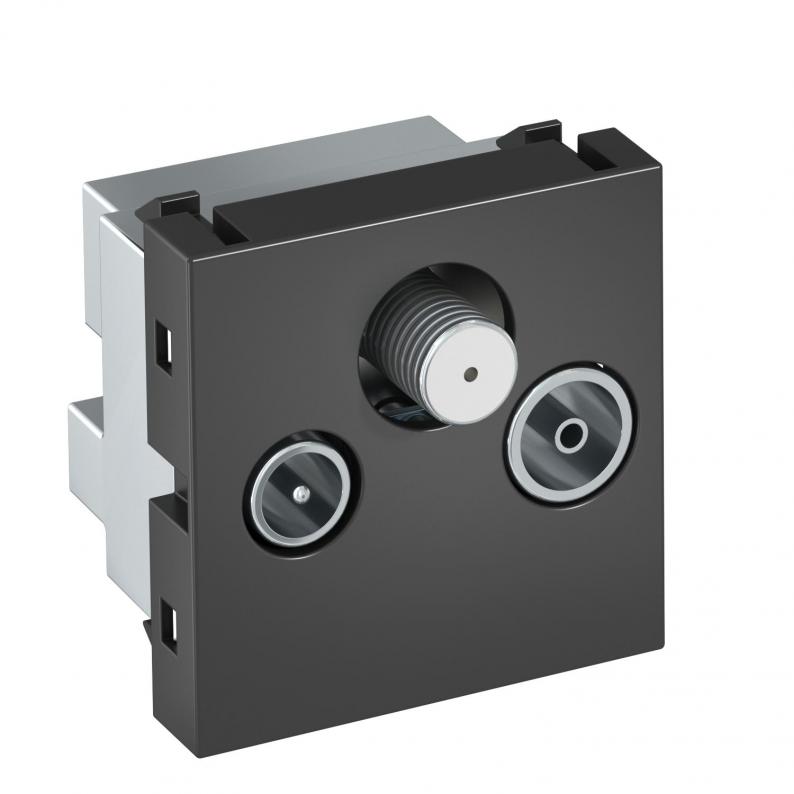

Antenna connection, 1 module, TV / radio / SAT, antenna socket, black-grey
Type ANT-3SD SWGR1 | Item no. 6105284 | EAN 4012196164769
Item no. / Type
6105284 / ANT-3SD SWGR1
Colour
Black-grey; RAL 7021
Smallest selling unit: 1 piece
1piece
Description
Socket for antenna, BK and satellite reception systems with connection for TV and radio.
Frequency: 5–2150 MHz
Heat attenuation: 5-862 MHz - 1dB
950-2150 MHz - 2 dB
Return channel attenuation: 14 dB
EMC protection class A
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Frequency: 5–2150 MHz
Heat attenuation: 5-862 MHz - 1dB
950-2150 MHz - 2 dB
Return channel attenuation: 14 dB
EMC protection class A
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data
Technical data

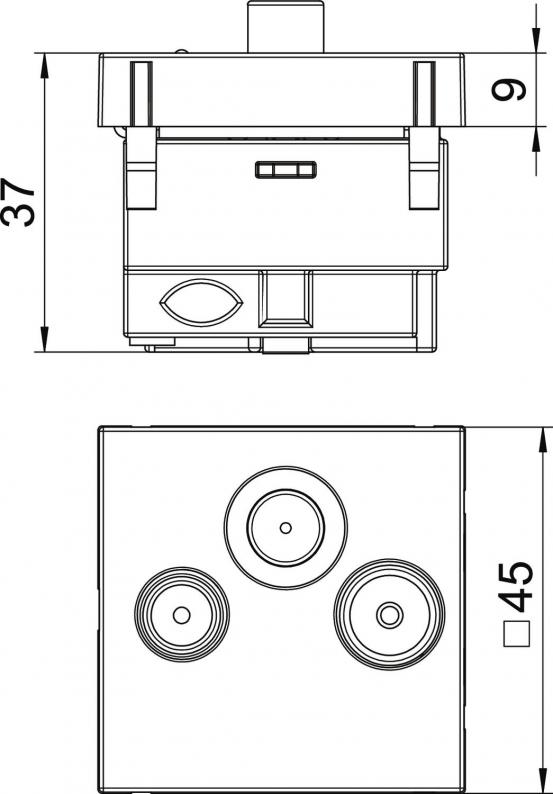

| Dimension | 45 x 45 |
|---|---|
| Version for | Socket |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3047 kg CO2e / 1 Piece |
