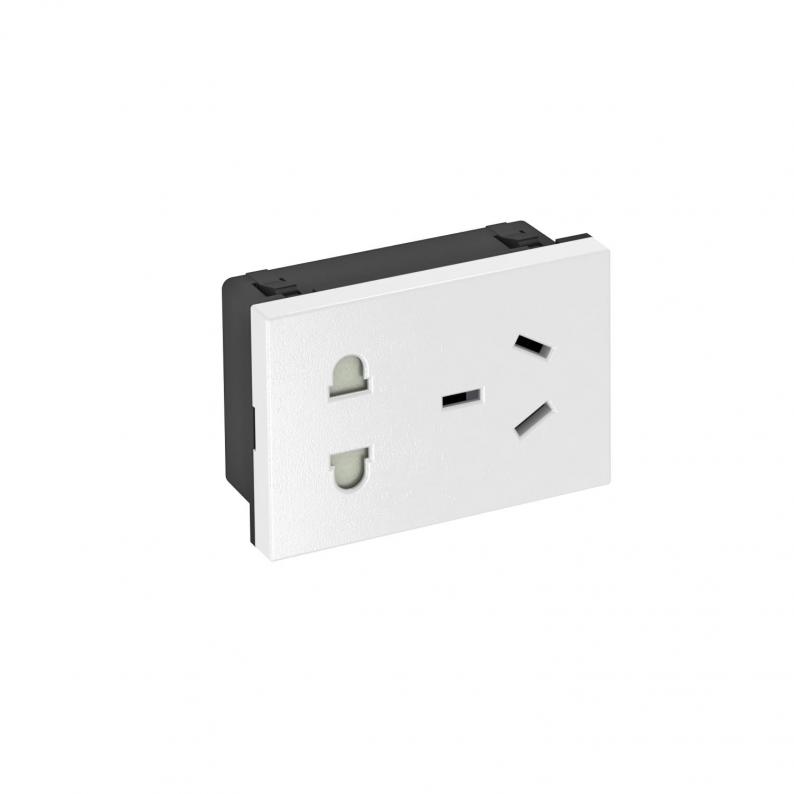

90° socket, China, combination CN-NEMA-EURO, single

90° socket, China, combination CN-NEMA-EURO, single

Type STD-CN0M RW1.5 | Item no. 6120744 | EAN 4012196050147

Show all variants
Item no. / Type
6120744 / STD-CN0M RW1.5
Number of units
1
Version for
Single 0°
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Single 90° socket, China, combination China-10A/NEMA-1/Europlug, with increased touch protection, with screw terminals, 2-pin, 10 A, 250 V~.
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Width67,5 mm
Height45 mm

Technical data

Number of poles2
Hinged coverno
increased touch protectionyes
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units1
Protection ratingOther
Nominal current10 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
Depth36,3 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle0°
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version forSingle 0°
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrew terminal
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
MaterialPolycarbonate
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0145 kg CO2e / 1 Piece
