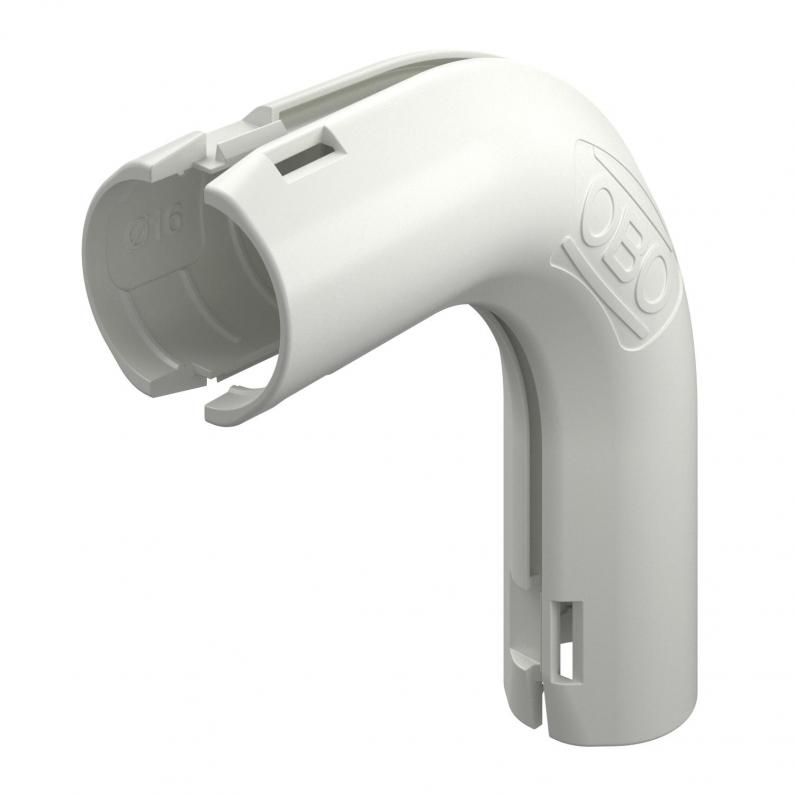

90° Quick pipe bend, pure white
Type 3000 BMS M16 RW | Item no. 2154062 | EAN 4012196869817
Item no. / Type
Smallest selling unit: 10 piece
10piece
Description
Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

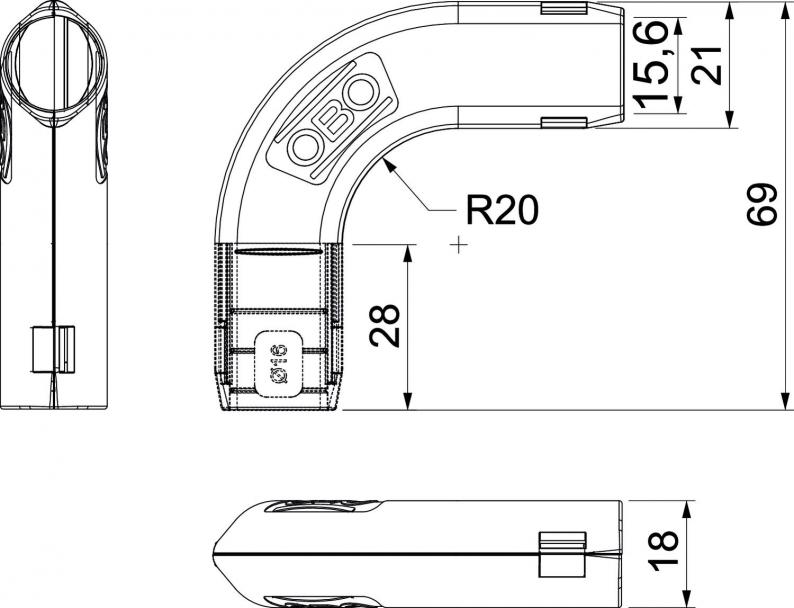

Dimensions
| Dimension L | 69 mm |
|---|---|
| Dimension d | 15,6 mm |
| Dimension B | 21,4 mm |
| Dimension R | 20 mm |
| Dimension L1 | 28 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | no |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | yes |
| Version for | Connector |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | 0 °C |
| Dimension | M16 |
| Material | Polypropylene |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0295 kg CO₂e / 1 Piece |
