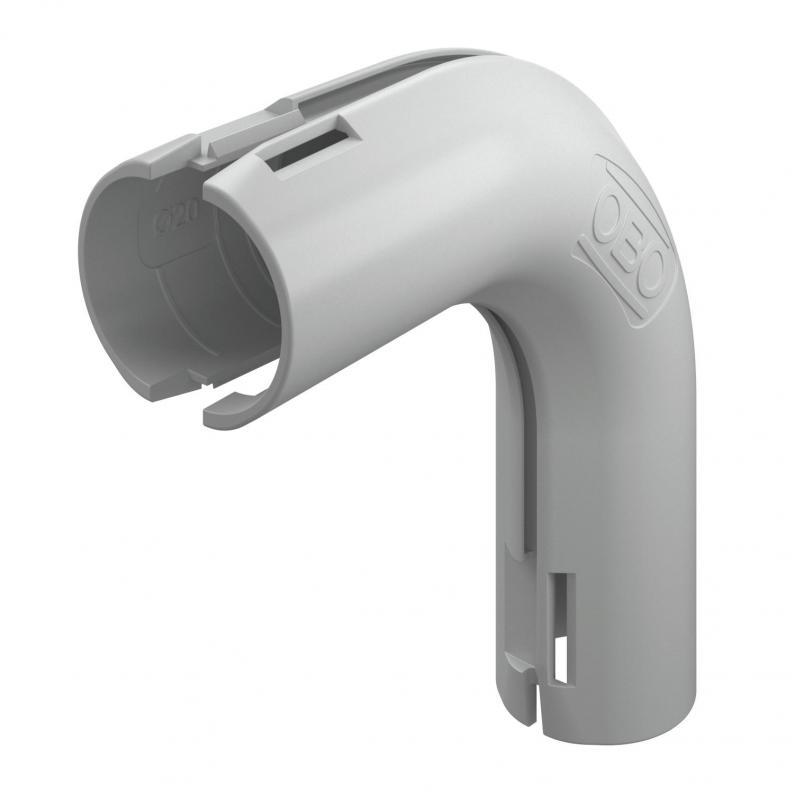

90° Quick pipe bend, light grey
Type 3000 BMS M20 LGR | Item no. 2154054 | EAN 4012196869756
Item no. / Type
2154054 / 3000 BMS M20 LGR
Smallest selling unit: 5 piece
5piece
Description
Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

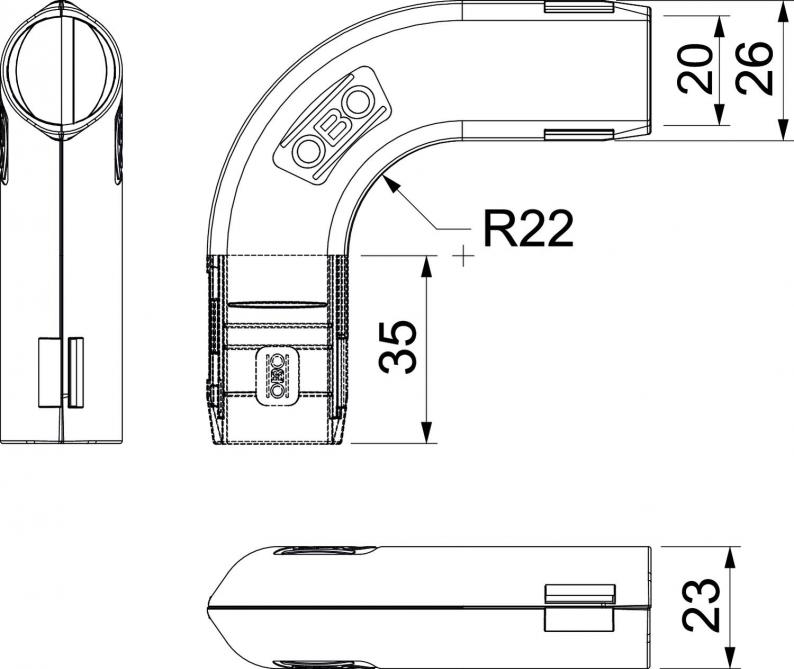

Dimensions
| Dimension L | 83,2 mm |
|---|---|
| Dimension d | 20 mm |
| Dimension B | 26,3 mm |
| Dimension R | 22 mm |
| Dimension L1 | 35 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | no |
| Flexible | no |
| Brushed surface | no |
| With inspection opening and lid | no |
| Two-part | yes |
| Version for | Connector |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | 0 °C |
| Dimension | M20 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0829 kg CO₂e / 1 Piece |
