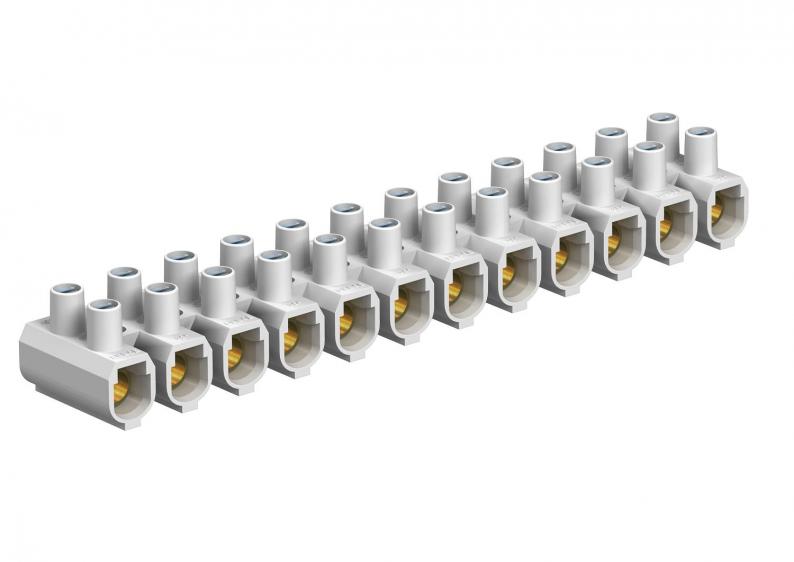

35 mm² series connectors, polypropylene
Type 80 CE WS/EKL 5E | Item no. 2056590 | EAN 4012195300069
Item no. / Type
Nominal voltage
Nominal cross-section, min.
Colour
No. of terminals
12
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
Description
Tested to EN 60998.
Brass terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips.
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 35 ÷ mm².
Nominal voltage 750 V.
Nominal current 125 A.
Max. attachment each side: 35 mm² multi-wire or 25 mm² fine-wire.
Brass terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips.
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 35 ÷ mm².
Nominal voltage 750 V.
Nominal current 125 A.
Max. attachment each side: 35 mm² multi-wire or 25 mm² fine-wire.
Technical data
Dimensions
| Length | 212,6 mm |
|---|---|
| Width | 36,4 mm |
| Height | 29,2 mm |
Technical data
| Ambient temperature | 80 °C |
|---|---|
| Pole number | 12 |
| Nominal current | 125 A |
| Nominal voltage | 750 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Drill hole spacing, centre | 18 mm |
| Suitable for solid conductors | yes |
| Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes |
| Transparent | no |
| Number of screwless terminals per pole | 2 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Version of electrical connection 2 | Screw connection |
| Connectable conductor cross-section, fine-wire without wire-end ferrule, max. | 25 mm² |
| Connectable conductor cross-section, fine-wire without wire-end ferrule, min. | 25 mm² |
| Connectable conductor cross-section, multi-wire, max. | 35 mm² |
| Connectable conductor cross-section, multi-wire, min. | 35 mm² |
| Nominal cross-section, min. | 35 mm² |
| Cross-section | Max. attachment each side: 35 mm² multi-wire or 25 mm² fine-wire mm² |
| No. of terminals | 12 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 35,0mm² |
| Material | Polypropylene |
| Colour | White |
