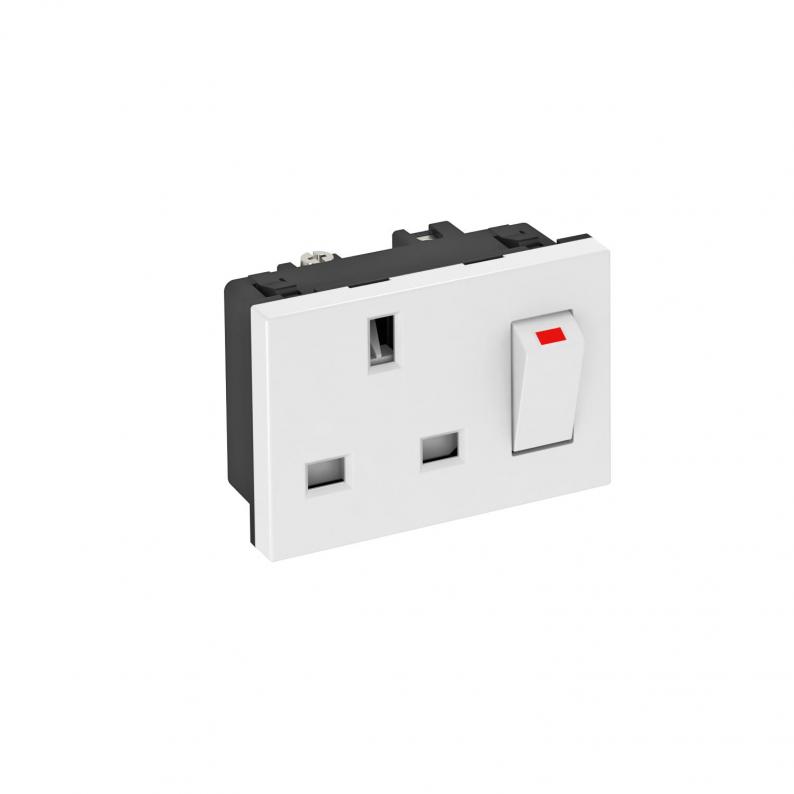

0° socket with switch, British Standard, single

Type STD-BS0G RW1.5 | Item no. 6120724 | EAN 4012196049868

Item no. / Type

6120724 / STD-BS0G RW1.5

Number of units

Version for

Single 0°

Colour

Pure white; RAL 9010

Smallest selling unit: 1 piece

Description

Socket, single 0°, with switch, British Standard, conforms to BS 1363, with increased touch protection, with screw terminals, 2-pin, 13 A, 250 V~.

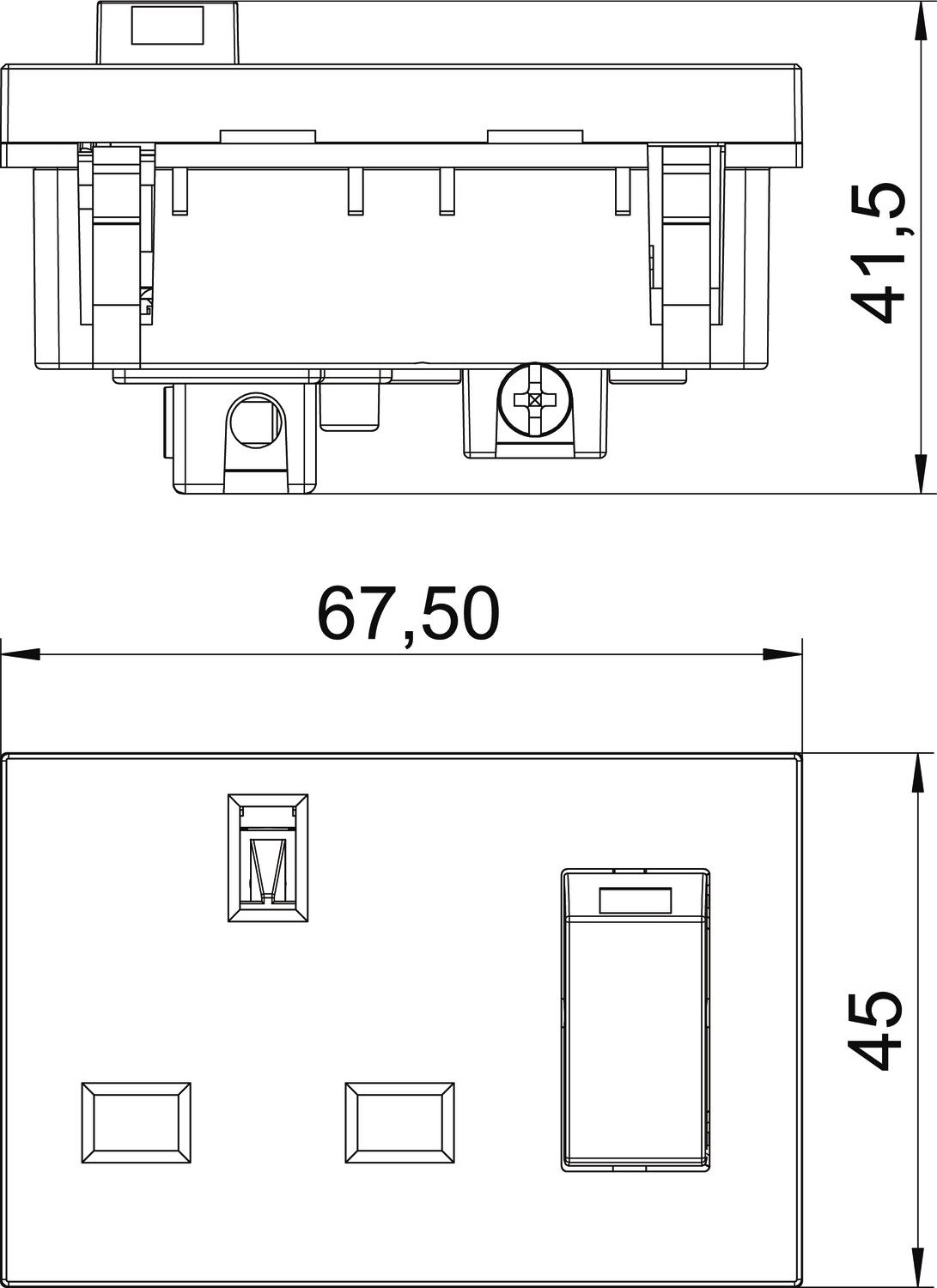

Width	67,5 mm
Height	45 mm

Number of poles	2
Hinged cover	no
increased touch protection	yes
Warning light	no
Halogen-free	yes
Labelling panel	no
Number of units	1
Protection rating	Other
Nominal current	13 A
Nominal voltage	250 V
Closable	no
Ejection mechanism	no
Surge protection	no
Error current protection	no
With fine-wire fuse	no
With on/off switch	yes
Rotated central insert	no
Depth	41,5 mm
Cover	Central plate
Printed label/coding	Without printing
Special power supply	Without special power supply
Surface version	Matt
Transparent	no
Socket angle	0°
Number of switchable sockets	1
With functional lighting	no
With orientation lighting	no
For more difficult conditions (according to VDE)	no
Version for	Single 0°
Number of modules (for modular construction)	0
Insulated installation	no
Mounting type	Device installation duct
Fastening type	Lock
Connection type	Screw terminal
Operating temperature, min.	-5 °C
Operating temperature, max.	40 °C
Coding	no
Dimension	250V, 13A
Material	Polycarbonate
Colour	Pure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate	0,0359 kg CO2e / 1 Piece
