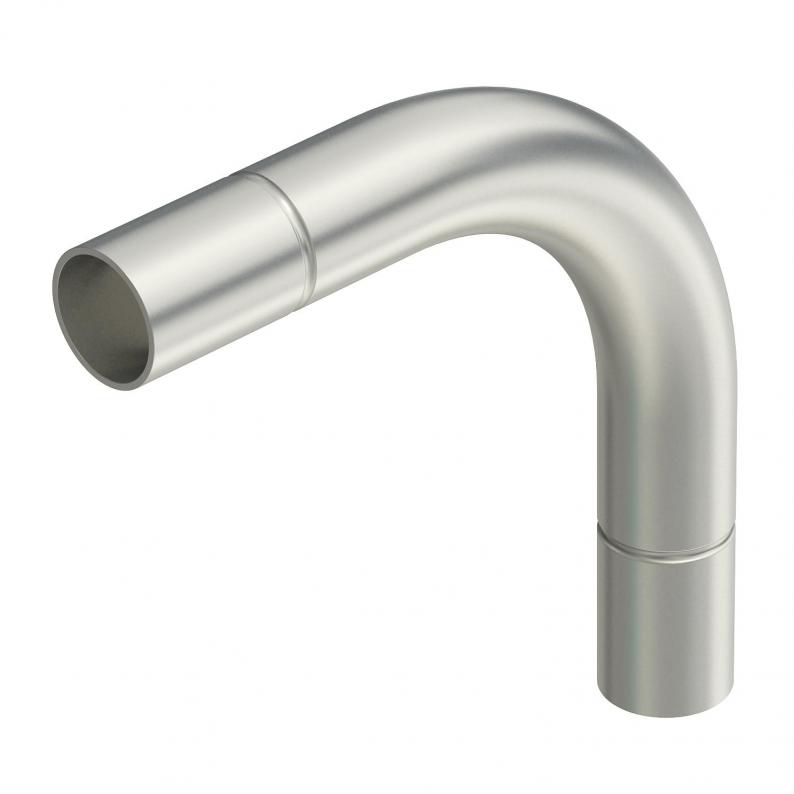

Stainless steel pipe bend, V4A
Type SB20W A4
|Item no. 2046761
|EAN 4012195924104
Item no. / Type
For nominal pipe diameter
Smallest selling unit: 10 piece
10piece
piece
Description
90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Technical data
Dimensions
| Dimension A | 30 mm |
|---|---|
| Dimension d | 20,2 mm |
| Dimension B | 155 mm |
| Dimension t | 1 mm |
| Dimension m (mm) | M20 |
| Dimension l | 30 mm |
| Dimension R | 90 mm |
| Dimension D | 22,2 mm |
Technical data
| Halogen-free | no |
|---|---|
| Angle of the bend | 90 ° |
| Polished surface | no |
| With sleeve | yes |
| Flexible | no |
| Brushed surface | yes |
| With inspection opening and lid | no |
| Two-part | no |
| For nominal pipe diameter | 20 mm |
| Version for | Connector |
| Permitted temperature range, min. | -45 °C |
| Permitted temperature range, max. | 400 °C |
| Dimension | Ø20mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,719 kg CO2e / 1 Piece |
