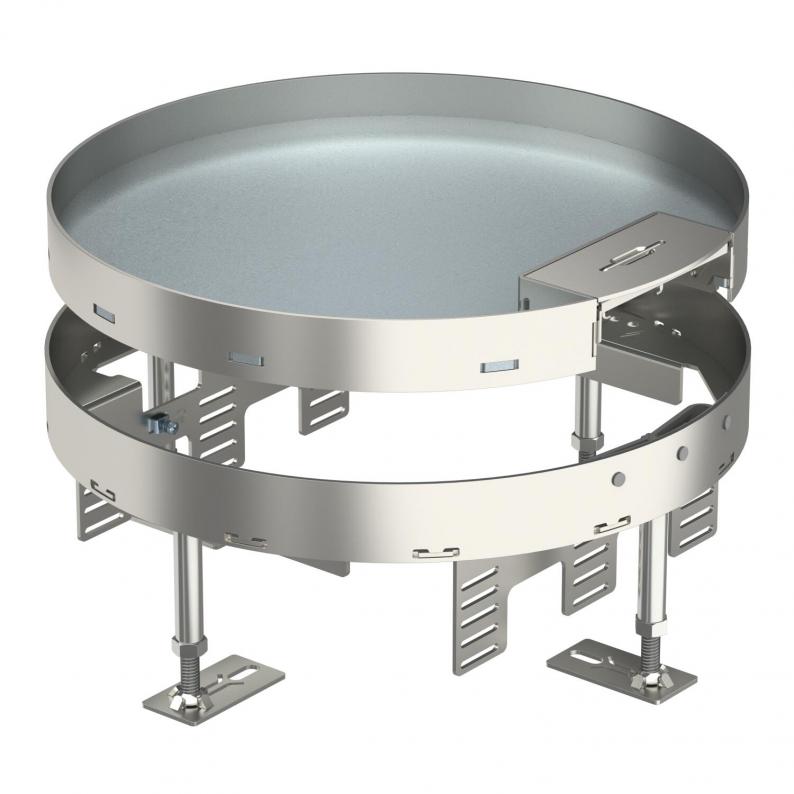

Height-adjustable cassette with cord outlet, RKSR, stainless steel
Type RKS2 R9 V20
|Item no. 7409278
|EAN 4012195867586
Item no. / Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size R9 with cord outlet for installation of accessories in dry-care floors for indoor use.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 6 individual installation devices with support ring/support clamp of 6 Modul 45 devices.
Height-adjustable round cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Cassette suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleanded floors in indoor areas. Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 6 individual installation devices with support ring/support clamp of 6 Modul 45 devices.
Height-adjustable round cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Cassette suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleanded floors in indoor areas. Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Technical data

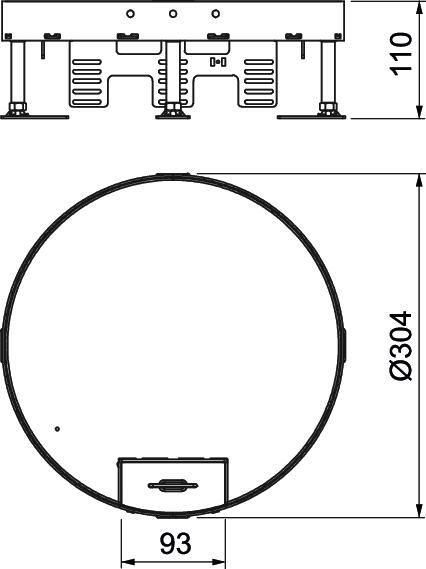

Dimensions
| Length | 304 mm |
|---|---|
| Width | 304 mm |
Technical data
| Floor height, min. | 110 mm |
|---|---|
| Floor height, max. | 155 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, min. | 110 mm |
| Height-adjustment range, max. | 155 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Installation diameter | 305 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Dimension | Ø305mm |
| Material | Stainless steel 1.4301 |
Environmental Data
18,4172 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,4172 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
UT4 45 4
7408727
Smallest selling unit: 1 piece
1piece
piece
Item no. 7400549
Mounting lid 350, nominal size R9Type
DUG 350-3 R9
Smallest selling unit: 1 piece
1piece
piece
Type
UT4 45 4
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor height, max.
Floor covering thickness
Nominal size for device installation units
Item no.
RKS2 R9 V20
110
155
20
R9
7409278
RKS2 R9 V25
110
155
25
R9
7409280
Floor covering thickness
RKS2 R9 V20
Item no.
7409278
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
20
Nominal size for device installation units
R9
RKS2 R9 V25
Item no.
7409280
Floor height, min.
110
Floor height, max.
155
Floor covering thickness
25
Nominal size for device installation units
R9
