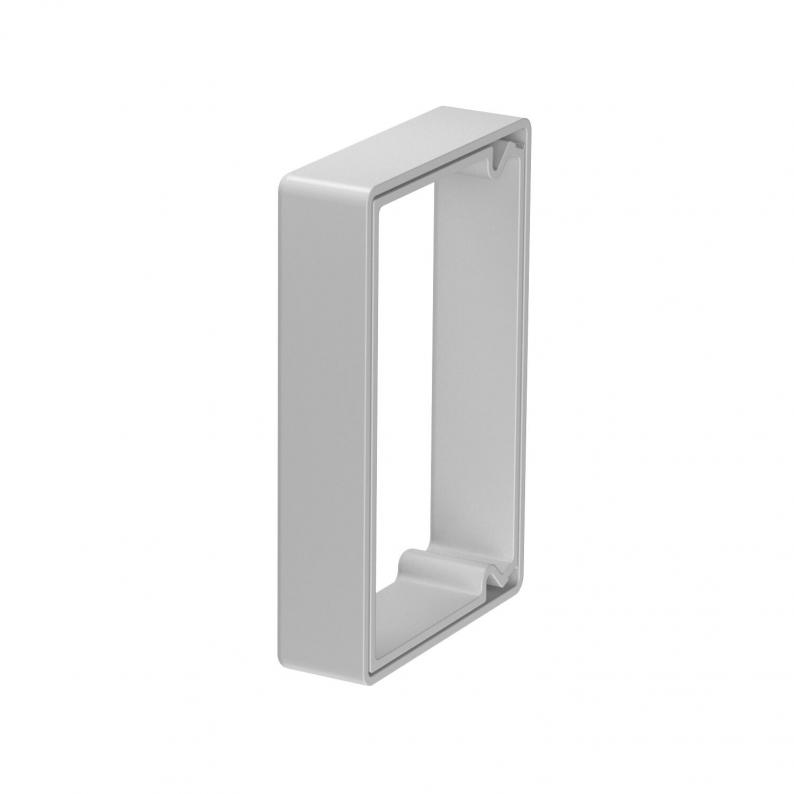

Edge protection ring KSR60100, for LKM cable duct type LKM 60100
Type KSR60100 | Item no. 6249852 | EAN 4012195020325
Item no. / Type
6249852 / KSR60100
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 5 piece
5piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data
Dimensions
| Length | 21 mm |
|---|---|
| Width | 104 mm |
| Height | 68 mm |
| Dimension b | 68 mm |
| Dimension a | 104 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 60x100mm |
| Material | Polyvinylchloride |
| Colour | Grey |
